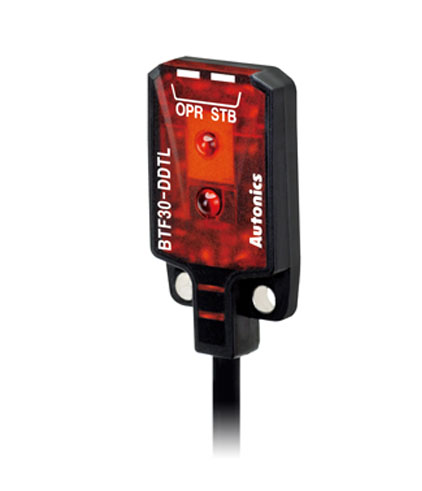

BTF Series

Ultra-Compact, Thin Type Photolectric Sensors with Built-In Amplifiers
The ultra-compact, ultra-thin type photoelectric sensors BTF series are ideal for installation in limited spaces and compact applications. The sensors measure just 3.7 mm in thickness, come equipped with built-in amplifiers and are capable of detecting tiny objects including metallic wires and semiconductor chips. The BTF Series is also built with IP67 protection structure and stainless steel mounting brackets, providing durable and reliable sensing solutions in diverse environments.

100531125332

Share this

Features

  • Ultra-thin size of only 3.7 mm
    – W 13 x H 19 x L 3.7 mm (through-beam type)
    – W 13 x H 24 x L 3.7 mm (diffuse reflective type, BGS reflective type)
  • Detection methods and minimum target size
    – Through-beam type (BTF1M): Ø2 mm
    – Diffuse reflective type (BTF30): Ø0.2 mm (at distance 10 mm)
    – BGS reflective type (BTF15): Ø0.2 mm (at distance 10 mm)
    * Detecting distance may vary by environmental factors
  • Maximum detection distance: 1 m (through-beam type)
  • Stability indicator (green LED) and operation indicator (red LED)
  • Stainless steel 304 mounting brackets
  • IP67 protection structure (IEC standard)
