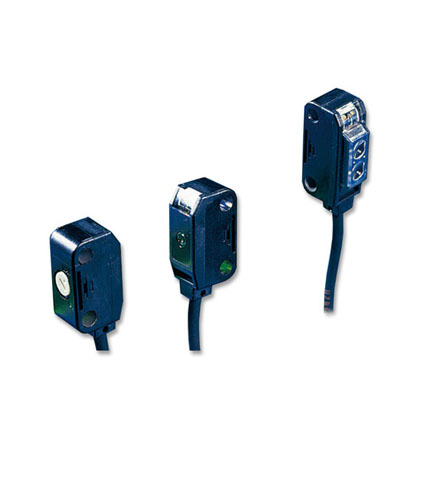

EX-20 Photoelectric Sensor

Ultracompact photoelectric sensors (side sensing)

Using a single chip optical IC we created the powerful EX20 sensors, which are among the smallest photoelectric sensors worldwide. In spite of their miniature size, the sensors incorporate a sensitivity adjuster. Since a red LED dot light source is used, alignment and confirmation of the sensing position is easy, even if very tiny objects have to be detected.

Characteristics:

  • Miniature construction
  • Response time only 0.5ms
  • Red LED
  • New: up to 35% less power consumption
  • New: improved ambient light immunity
  • Adjustable sensitivity
  • Thru-beam
  • Diffuse reflective
  • Sealed to IP67
  • 2 indicator LEDs
Share this

Ultracompact photoelectric sensors (side sensing)

Using a single chip optical IC we created the powerful EX20 sensors, which are among the smallest photoelectric sensors worldwide. In spite of their miniature size, the sensors incorporate a sensitivity adjuster. Since a red LED dot light source is used, alignment and confirmation of the sensing position is easy, even if very tiny objects have to be detected.

Characteristics:

  • Miniature construction
  • Response time only 0.5ms
  • Red LED
  • New: up to 35% less power consumption
  • New: improved ambient light immunity
  • Adjustable sensitivity
  • Thru-beam
  • Diffuse reflective
  • Sealed to IP67
  • 2 indicator LEDs

Accessories:

  • Slit masks
  • Reflectors
  • Mounting bracket

Specifications

NPN output EX-23 EX-29A /
EX-29B
EX-22A /
EX-22B
EX-26A /
EX-26B
EX-28A /
EX-28B
PNP output EX-23PN EX29-APN / EX29-BPN EX-22APN / EX-22BPN EX-26APN / EX-26BPN EX-28APN / EX-28BPN
Sensor type Thru-beam Reflexion Diffuse
Rated sensing distance 2m 200mm 160mm 14mm 115mm
Sensing range 0 – 2m 30 – 200mm 5 – 160mm 6 – 14mm 45 – 115mm
Standard detectable object Metal, matt black White drawing paper Copper wire
Min. Ø 3mm Min. Ø 15mm 50 x 50mm Min. Ø 0,1mm
Detectable target Opaque Opaque,
semi- transparent
Opaque, semitransparent, transparent
Hysteresis < 15% of measurement range
Response time Max. 0,5ms
Output transistor Max. 50mA
Wavelength of emitting diode 680nm, red LED
Rated current consumption without load Transmitter: max. 10mA
Receiver: max. 10mA
Max. 13mA Max. 15mA
Housing material Plastic
Protection IP67
Physical size (HxWxL) 19 x 8,2 x 10.5mm 22 x 8.2 x 12.3mm
Connection method Cable 2m
Operating voltage 12 – 24V DC (±10%)
Usable ambient temp. -25°C to +55°C
Weight (approx.) Emitter: 20g
Receiver: 20g
20g
A = light ON, B = dark ON

Ultracompact photoelectric sensors (front sensing)

EX-20 series sensors expand our innovative and super slim photoelectric sensors which combine high performance and miniature design. EX-20 sensors can be fastened with M3 screws. Moreover, metal inserts have been provided in the mounting holes, thus the sensor will not be damaged even if the screws are overtightened.

Characteristics:

  • Response time only 0.5ms
  • Red LED
  • New: up to 35% less power consumption
  • New: improved ambient light immunity
  • Thru-beam
  • Diffuse reflective (fixed focus)
  • Sealed to IP67
  • Two-color indicator LED

Accessories:

  • Slit masks
  • Mounting brackets

Specifications

NPN output EX-21A/EX-21B* EX-24A/EX-24B*
PNP output EX-21A-PN/EX-21B-PN EX-24A-PN/EX-24B-PN*
Sensor type Thru-beam Diffuse
Rated sensing distance 1m 25mm
Sensing range 0 – 1m 2 – 25mm
Detectable target Metal, matt black, min. Ø 2.6mm Copper wire, min. Ø 0.1mm
Detectable target Opaque Opaque, semitransparent, transparent
Hysteresis < 15% of measurement range
Response time Max. 0.5ms
Output transistor Max. 50mA
Wavelength of emitting diode 680nm, red LED
Rated current consumption Transmitter: max. 10mA
Receiver: max. 10mA
Max. 13mA
Housing material Plastic
Protection IP67
Physical size (HxWxL) 18 x 4.5 x 16mm
Connection method Cable 2m
Operating voltage 12 – 24V DC (±10%)
Usable ambient temp. -25°C to +55°C
Weight Emitter: approx. 20g
Receiver: approx. 20g
Approx. 20g
* = dark ON
