GX Inductive Sensor

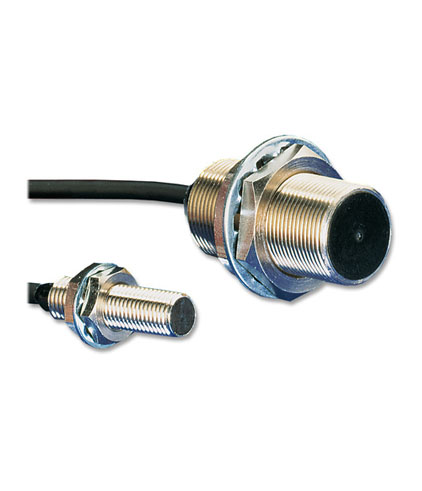

Cylindrical inductive sensors

The GX cylindrical inductive sensor series with a built-in amplifier comes in two versions – with and without a threaded section. Numerous special types allow you to select the optimum sensor for your application. GX sensors have a large sensing range and come with an indicator LED, which makes it easy for you to check the operation. GX series sensors have robust cases and reinforced cables whose lifetime is 10 times that of conventional connecting cables.

Share this

Cylindrical inductive sensors

The GX cylindrical inductive sensor series with a built-in amplifier comes in two versions – with and without a threaded section. Numerous special types allow you to select the optimum sensor for your application. GX sensors have a large sensing range and come with an indicator LED, which makes it easy for you to check the operation. GX series sensors have robust cases and reinforced cables whose lifetime is 10 times that of conventional connecting cables.

Characteristics:

  • Robust cases with or without threaded section
  • Indicator LED
  • Built-in amplifier
  • Inflection resistant cable, optional (-R)
  • Oil and heat resistant cable
  • At 3.0mm diameter, one of the smallest sensor heads for industrial applications
  • Each sensor is available in 4 versions: normally open or normally closed contacts on object approach; standard or inflection resistant cables

Specifications

Normally open GX-3S GX-4S GX-5S GX-5M GX-8M GX-8ML
Normally closed GX-3SB GX-4SB GX-5SB GX-5MB GX-8MB GX-8MLB
Flush mounting Not flush mounting
Sensor type
(Ø in mm)
Cylinder type
Ø 3.8
Cylinder type
Ø 4.4
Cylinder type
Ø 5.4
Thread type
M5
Thread type
M8
Thread type
M8
Rated sensing distance 0.8mm ± 15% 1mm ± 15% 0.8mm ± 15% 1mm ± 15% 2mm ± 15%
Sensing range 0 – 0.6mm 0 – 0.8mm 0 – 0.6mm 0 – 0.8mm 0 – 1.6mm
Detection frequency 1kHz 1.5kHz 1kHz 500Hz
Standard
detectable object
Steel
5x5x1mm
Steel
6x6x1mm
Steel
5x5x1mm
Steel
8x8x1mm
Steel
12x12x1mm
Hysteresis Max. 15% of measurement range Max. 15% of measur. range Max. 10% of measurement range
Output transistor 50mA 200mA 50mA 200mA
Rated current consumption Max. 15mA
Housing material Stainless steel Brass nickel plating
Protection IP67
Physical size (ØxL) Ø 3.8 x 30mm Ø 4.4 x 30mm Ø 5.4 x
30mm
M5 x
30mm
M8 x
30mm
M8 x
30mm
Connection method Cable 3m
Operating voltage 12 – 24V DC
(± 10%)
10 – 30V DC 12 – 24V DC
(± 10%)
10 – 30V DC
Usable ambient temp. -25°C to +70°C -25°C to +80°C -25°C to +70°C -25°C to +80°C -25°C to +70°C
Weight (approx.) 30g 55g 30g 60g



Typical applications

Product Feature Product Feature Product Feature
Control of completeness Sensing the punch of a die Counting parts
