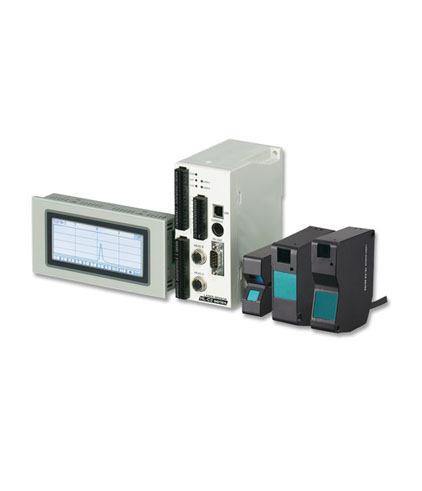

By combining our accumulated know-how in measurement technology with the latest digital technology, we have created the versatile laser displacement sensor HL-C2, the best sensor in its class. Even for extremely difficult applications such as measuring variations in HDD surfaces or sensing very shiny objects, the HL-C2 sensor functions stably and consistently.
By combining our accumulated know-how in measurement technology with the latest digital technology, we have created the versatile laser displacement sensor HL-C2, the best sensor in its class. Even for extremely difficult applications such as measuring variations in HDD surfaces or sensing very shiny objects, the HL-C2 sensor functions stably and consistently. By using our unique new optical system, high density light-receiving cells and a cutting edge sampling technology, a wider variety of objects can now be stably measured with greater precision and speed than ever before.
Characteristics:
Options:
The compact and multifunctional controller unit HL-C2C again shows how powerful this new sensor series is. A flexible combination of controller and sensor heads allows cost-effective service and maintenance. The controller can use measurements taken by the two sensors to instantaneously calculate critical values. The compact touch panel, which is extremely easy to operate, can in turn display such critical values or be used in combination with the controller to calculate results, e.g. for thickness or difference measurement. Moreover, all adjustments and results can be transmitted via USB 2.0, RS232C or Ethernet to a normal PC.
Characteristics:
Optional:
| Model No. for small beam spot type |
HL-C201F [E] | HL-C203F [E] | HL-C205B[E] | HL-C205C[E] | HL-C208B[E] | |||
|---|---|---|---|---|---|---|---|---|
| Model No. for linear beam spot type |
HL-C201F[E]-MK | HL-C203F[E]-MK | HL-C205B[E]-MK | HL-C205C[E]-MK | HL-C208B[E]-MK | |||
| Setup mode | Specular reflective | Diffuse reflective | Specular reflective | Diffuse reflective | Specular reflective | Diffuse reflective | Specular reflective | Diffuse reflective |
| Measuring range | 10 ± 1mm | 30 ± 5mm | 24,4 ± 4.6mm | 50 ± 5mm | 46 ± 5mm | 50 ± 5mm | 46 ± 5mm | 85 ± 20mm |
| Resolution *) | 0.01µm | 0.025µm | 0.05µm | 0.15µm | ||||
| Laser class | 1 | 2 | 3R | 2 | ||||
| Beam size small beam spot type |
ø20µm | ø30µm | ø70µm | ø100µm | ||||
| Beam size linear beam spot type [_-MK] |
20 x 700µm | 30 x 1200µm | 70 x 1000µm | 100 x 1200µm | ||||
| Laser wavelength | 658nm | |||||||
| Max. power of the emitting element | 0.1mW | 1mW | 5mW | 1mW | ||||
| Dimensions (HxWxL) | 54 x 95 x 20mm | 80 x 70 x 26mm | 90 x 74 x 26mm | |||||
| Weight (approx.) | 250g (including cable) | 300g (including cable) | ||||||
| Model No. for small beam spot type | HL-C208B [E] | HL-C208C[E] | HL-C211F [E] | HL-C211F5[E] | HL-C235CE-W | |||
|---|---|---|---|---|---|---|---|---|
| Model No. for linear beam spot type | HL-C208B[E]-MK | HL-C208C[E]-MK | HL-C211F[E]-MK | HL-C211F5[E]-MK | HL-C235CE-WMK | |||
| Setup mode | Specular reflective | Diffuse reflective | Specular reflective | Diffuse reflective | Specular reflective | Diffuse reflective | Specular reflective | Diffuse reflective |
| Measuring range | 81.4 ± 6mm | 85 ± 20mm | 81.4 ± 6mm | 110 ± 15mm | 106.7 ± 14.5mm | 110 ± 15mm | 106.7 ± 14.5mm | 350 ± 200mm |
| Resolution *) | 0.15µm | 0.1µm | 2µm | |||||
| Laser class | 2 | 3R | 2 | 3R | ||||
| Beam size small beam spot type |
ø100µm | ø80µm | ø400µm | |||||
| Beam size linear beam spot type |
100 x 1200µm | 80 x 1700µm | 400 x 6500µm | |||||
| Laser wavelength | 658nm | |||||||
| Max. power of the emitting element | 1mW | 5mW | 1mW | 5mW | ||||
| Dimensions (HxWxL) | 90 x 74 x 26mm | |||||||
| Weight (approx.) | 300g (including cable) | |||||||
| *) Model numbers with [E] have a resolution of 0.25 μm | ||||||||
| Common for all HL-C2 heads | |
|---|---|
| Housing material | Die-cast aluminum |
| Protection | IP67 |
| Cable | 0.5m with connector |
| Ambient temp. | 0°C to +45°C |
| Ambient humidity | 35 to 85% RH, Storage: 35 to 85% RH |
| Type | RS-232C communication port | Ethernet communication port | ||
|---|---|---|---|---|
| Controller (NPN) for up to 2 HL-C2 sensor heads |
Controller (PNP) for up to 2 HL-C2 sensor heads |
Controller (NPN) for up to 2 HL-C2 sensor heads |
Controller (PNP) for up to 2 HL-C2 sensor heads |
|
| Model No. | HL-C2C | HL-C2C-P | HL-C21C | HL-C21C-P |
| Connectable sensor head | max. 2 units | |||
| Supply voltage | 24 V DC ± 10 % including ripple 0.5 V (P-P) | |||
| Current consumption | 500 mA approx. at 2 sensor heads connected / 350 mA approx. at 1 sensor head connected (100 mA approx. is additionally required when the mini console is connected) |
|||
| Sampling cycle | 10 μs, 20 μs, 40 μs, 100 μs, 200 μs, 400 μs, 1 ms, 2 ms | |||
| Analog output | Voltage output scale: -5 to +5 V and current output scale: 4 to 20 mA | |||
| Outputs | Alarm, judgment, strobe, max. 100mA 30V DC | |||
| Inputs | Remote interlock, laser control, timing, reset, memory change | |||
| Indicator | Power, Sensor head laser radiation, alarm | |||
| Interface | Baud rate: 9600, 19200, 38400, 115200 bit/s | IEEE802.3u, 10 Base-T / 100 Base-TX RJ45 | ||
| USB interface | USB 2.0 Full-speed | |||
| Ambient temperature | 0°C to + 50°C | |||
| Accessory | CD-ROM: 1 pc., USB cable (2m): 1 pc., Short bracket: 1 pc. | CD-ROM: 1 pc., USB cable (2m): 1 pc., short bracket: 1 pc. Ferrite cores (E04SR200935A, by Seiwa Electric Mfg. Co., Ltd.): 3 pcs |
||
| Dimensions (HxWxD) | 120x59x95mm (D = 105.5mm including screw teminal) | |||
 |
 |
 |
| Measurement of HDD surface variations |
Measurement of the heights of chip parts |
Measurement of the thickness of copper clad laminate |
