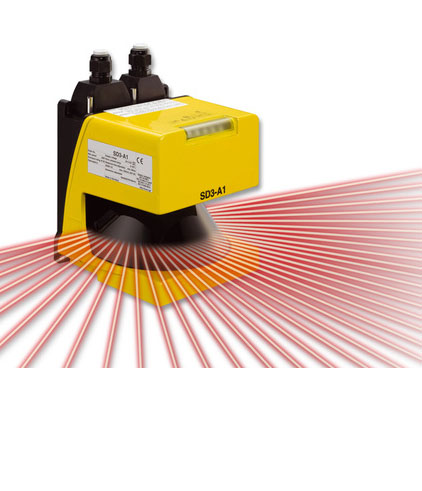

The Panasonic SD3 safety laser scanner is a cost-effective alternative for guarding danger zones. It can be used flexibly in confined spaces and for areas where the danger zone changes.
The SD3 can monitor an area within an angle of up to 190°, and divides it into 2 zones:
The Panasonic SD3 safety laser scanner is a cost-effective alternative for guarding danger zones. It can be used flexibly in confined spaces and for areas where the danger zone changes.
The SD3 can monitor an area within an angle of up to 190°, and divides it into 2 zones:
The contours of these zones can be configured precisely for any application. Up to eight zone patterns can be set and activated at any given time, even during operation.
The reference boundary function memorizes the position of stationary objects and establishes a virtual boundary. It also monitors beam alignment after installation and issues an alarm if the beam becomes misaligned.
Characteristics:
Accessories:
 |
A pulsed laser beam (3) is discharged from the emitting element (T) to the reflectors (1) and onto a rotating mirror. The rotating mirror (2) scans the laser as it rotates. The diffuse reflection (4) from the sensing object is then returned to the receiving element (R) by means of the rotating mirror. The location of the sensing object (SO) is measured based on the travel time of the laser and the angular information of the rotating mirror. The monitoring area (max. 190°) is divided into 528 segments of 0.36° each by the rotating mirror. An additional sensor (5) detects dirt on the lens’ surface to guarantee functionality. |
| Type | Safety laser scanner | ||||
|---|---|---|---|---|---|
| Model no. | SD3-A1 | ||||
| MTTFd | 100 years | ||||
| Applicable standards | IEC 61496 1/2 (Type 3), EN ISO 13849 (PLd), IEC 61508 (SIL 2) | ||||
| PFHd | 1,5X10-7 1/h | ||||
| Protection zone | Min. sensing object setting | ø150mm | ø70mm | ø50mm | ø40mm |
| Sensing range (radius) | 0 to 4.0m | 0 to 4.0m | 0 to 2.8m | 0 to 2.2m | |
| Warning zone | Min. sensing object setting | ø150mm (fixed) | |||
| Sensing range (radius) | 0 to 15m | ||||
| Scanning angle | 190° / 180° (by setting) | ||||
| Number of zone settings | Max. 7 + 1 (without protection zone) | ||||
| Min. zone setting range | 200mm | ||||
| Supply voltage | 24V DC + 20-30% | ||||
| Current consumption | 300mA approx. (excluding external connection load) | ||||
| Control outputs (OSSD 1, OSSD 2) |
PNP open-collector transistor 2 outputs Rated operating voltage: supply voltage (UB) -3.2V Max. source current: 250mA Residual voltage: 3.2V or less |
||||
| Laser protection class | Class 1 (IEC 60825) | ||||
| Degree of protection | IP65 | ||||
| Ambient temperature | 0 to +50°C, Storage: -20 to + 60°C | ||||
| Material | Main body: Die-cast aluminum, Scanner window: Thermoplastic resin | ||||
| Accessories | SD3-PS (exclusive 15-pin connector): 1 pc., SD3-RS232 (exclusive 9-pin connector): 1 pc., Mounting screws M5 (length 20 mm) hexagon-socket-head bolt: 2 pcs., Mounting screws M5 (length 16mm) hexagon-socket-head bolt: 2 pcs., attached to SD3-PS: 1 set, Simplified instruction manual: 1 copy, Installation CD-ROM (includes detailed instruction manual data): 1 CD |
||||
| Weight | Net weight: 2.1kg approx., Gross weight: 2.9kg approx | ||||
 |
 |
 |
| Detecting presence in a defined field | Confirming safety around automatically guided vehicles | Detecting entry into robot working areas |
