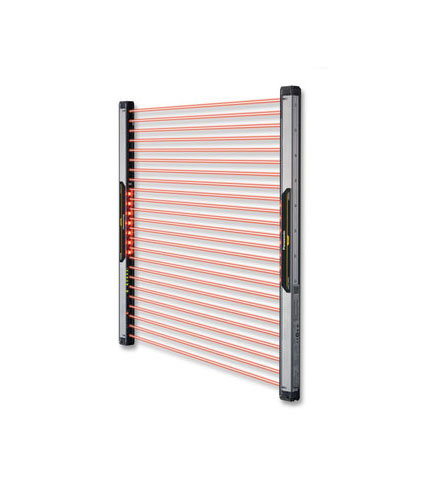

SF4B-C Safety Light Curtain

Type 4 – compact safety light curtain

The compact safety light curtains with a thickness of only 20 x 27.4mm come with an ultra light housing. The combination of a plastic body with a metal inner frame is designed to minimize weight while at the same time increasing the toughness. The SF4B-C series is available as a hand protection type with a beam pitch of 20mm, allowing you to detect objects with a diameter as small as 25mm.

Download Here
Share this

Type 4 – compact safety light curtain

The compact safety light curtains with a thickness of only 20 x 27.4mm come with an ultra light housing. The combination of a plastic body with a metal inner frame is designed to minimize weight while at the same time increasing the toughness. The SF4B-C series is available as a hand protection type with a beam pitch of 20mm, allowing you to detect objects with a diameter as small as 25mm. The arm-protection type with its beam pitch of 40mm can detect objects of 45mm and larger. Both types offer an operation range of up to 7m. Cable and connector types are available.

Characteristics:

  • Side mounting possible to avoid dead zones
  • Very light weight due to combined metal/polycarbonate housing
  • Very compact dimensions (20 x 27.4mm)
  • Large multi-purpose indicator
  • PNP / NPN polarity switching
  • Beam alignment indicator
  • Interference prevention incorporated
  • IP65 protection

Specifications SF4B-C

SF4B-C
Sensor type Safety light curtain
Safety category EN 61496-1 (Type 4), EN ISO 13849-1 (Category 4, PLe),
EN 61508-1 to 7 (SIL3), EN 55011, EN 50178, EN 61000-6-2
Protective height See table below
Operating range 0.3 to 7m
Beam pitch 20mm and 40mm
Min. sensing object Ø 25mm and 45mm
Detection capability Opaque
Response time OFF response: 14 ms or less,
ON response: 80 to 90 ms
Output transistors OSSD (max.: 200mA; leakage current: 100μA or less)
Emitting element Infrared LED (850nm)
Current consumption Emitter: max. 50mA,
receiver: max. 45mA (depends on the type)
Material Enclosure: polycarbonate alloy,
sensing surface: polycarbonate alloy
Degree of protection IP65
Physical size (HxWxL) H x 20 x 27.4mm (H see table below)
Connection method Connector and cable (5m) type available
Operating voltage 24V DC (±10%)
Usable ambient temperature -10°C to +55°C
Weight See table below



Hand protection type

Min. sensing object ø25mm (20mm in beam pitch) No. of beam channels Protective height Weight
Pigtailed type
(with muting function)		 Cable type   (mm) (g)
Pigtailed / cable type
SF4B-H12CA-J05 SF4B-H12C 12 263 330/670
SF4B-H16CA-J05 SF4B-H16C 16 343 400/740
SF4B-H20CA-J05 SF4B-H20C 20 423 480/820
SF4B-H24CA-J05 SF4B-H24C 24 503 550/890
SF4B-H28CA-J05 SF4B-H28C 28 583 630/970
SF4B-H32CA-J05 SF4B-H32C 32 663 700/1000
SF4B-H36CA-J05 SF4B-H36C 36 743 780/1100
SF4B-H40CA-J05 SF4B-H40C 40 823 850/1200
SF4B-H48CA-J05 SF4B-H48C 48 983 1000/1300
SF4B-H56CA-J05 SF4B-H56C 56 1143 1200/1500
SF4B-H64CA-J05 SF4B-H64C 64 1303 1300/1600
SF4B-H72CA-J05 SF4B-H72C 72 1463 1500/1800
SF4B-H80CA-J05 SF4B-H80C 80 1623 1600/1900
SF4B-H88CA-J05 SF4B-H88C 88 1783 1800/2100
SF4B-H96CA-J05 SF4B-H96C 96 1943 1900/2200



Arm/foot protection type

Min. sensing object ø45mm (40mm in beam pitch) No. of beam channels Protective height Weight
Pigtailed type
(with muting function)		 Cable type   (mm) (g)
Pigtailed/cable type
SF4B-A8CA-J05 SF4B-A8C 8 343 400/740
SF4B-A12CA-J05 SF4B-A12C 12 503 550/890
SF4B-A16CA-J05 SF4B-A16C 16 663 700/1000
SF4B-A20CA-J05 SF4B-A20C 20 823 850/1200
SF4B-A24CA-J05 SF4B-A24C 24 983 1000/1300
SF4B-A28CA-J05 SF4B-A28C 28 1143 1200/1500
SF4B-A32CA-J05 SF4B-A32C 32 1303 1300/1600
SF4B-A36CA-J05 SF4B-A36C 36 1463 1500/1800
SF4B-A40CA-J05 SF4B-A40C 40 1623 1600/1900
SF4B-A44CA-J05 SF4B-A44C 44 1783 1800/2100
SF4B-A48CA-J05 SF4B-A48C 48 1943 1900/2200



Options: Metal protection case

Applicable beam channels   (Only one product per packaging unit. Order two for mounting.)
Hand protection type Arm/foot protection type Model no.
12 — MS-SF4BCH-12
16 8 MS-SF4BCH-16
20 — MS-SF4BCH-20
24 12 MS-SF4BCH-24
28 — MS-SF4BCH-28
32 16 MS-SF4BCH-32
36 — MS-SF4BCH-36
40 20 MS-SF4BCH-40
48 24 MS-SF4BCH-48
56 28 MS-SF4BCH-56
64 32 MS-SF4BCH-64
72 36 MS-SF4BCH-72
80 40 MS-SF4BCH-80



Control unit

Designation Model no. Description
Slim type control unit SF-C13 Use a discrete wire cable to connect the control unit to the light curtain. The muting function can be used. Compatible with up to Control Category 4.

When connecting the pigtailed type (with muting function) SF4B-_CA-J05, be sure to order a mating cable separately.

  • Mating cable: SFB-CC_-MU
  • Extension cable: SFB-CCJ_-MU
