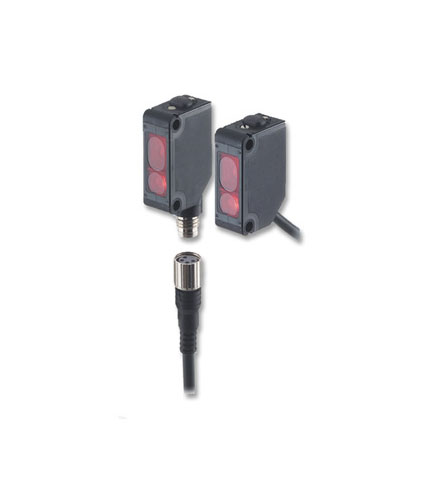

CX-440 Photoelectric Sensor

Compact photoelectric sensors

Four ultracompact sensors are available that use the triangulation measurement principle. Foreground and background suppression are included with a visible spot. Hysteresis is low and the sensor is not affected by colours. The sensor is equipped with a 5-turn adjuster and a red light spot so that even demanding settings can be handled with ease. CX-440 series applications include identifying extremely thin and small objects on conveyers in the electronic or food industry.

Download Here
Share this

Compact photoelectric sensors

Four ultracompact sensors are available that use the triangulation measurement principle. Foreground and background suppression are included with a visible spot. Hysteresis is low and the sensor is not affected by colours. The sensor is equipped with a 5-turn adjuster and a red light spot so that even demanding settings can be handled with ease. CX-440 series applications include identifying extremely thin and small objects on conveyers in the electronic or food industry.

Characteristics:

  • Fore- and background suppression
  • Visible spot
  • 5-turn adjuster
  • Low hysteresis
  • Light ON / dark ON modes
  • Automatic cross talk suppression
  • Protection IP67
  • Short-circuit protection

Accessories:

  • Mounting brackets
  • M8 connector with 2m or 5m cable

Specifications

NPN output CX-441 (Z) CX-443 (Z) CX-444 (Z) CX-442 (Z)
PNP output CX-441P (Z) CX-443P (Z) CX-444P (Z) CX-442P (Z)
Sensor type Reflective photoelectric sensor
Rated sensing distance 50mm 50mm 100mm 300mm
Sensing range 2 – 50mm 15 – 100mm 20 – 300mm
Spot diameter (Ø) Ø 2mm Ø 6.5mm Ø 9mm Ø 15mm
Detectable object White drawing paper 50 x 50mm
Detectable target Nontransparent, semitransparent, transparent
Hysteresis </= 2% </= 5%
Response time Max. 1ms
Output /Transistor Max.100mA
Emitting diode Red LED 650nm
Rated current consumption without load Max. 20mA
Housing material Plastic
Protection IP67
Physical size (HxWxL) 31.2 x 11.2 x 20mm
Connection method Cable 2m or M8 connector (-Z)
Operating voltage 12 – 24V CD (±10%)
Usable ambient temp. -25°C to +55°C
Weight (approx.) 55g

CX-440 typical applications

Product Feature Product Feature Product Feature
Colour-independent object detection Object detection Object detection when visibility is limited
