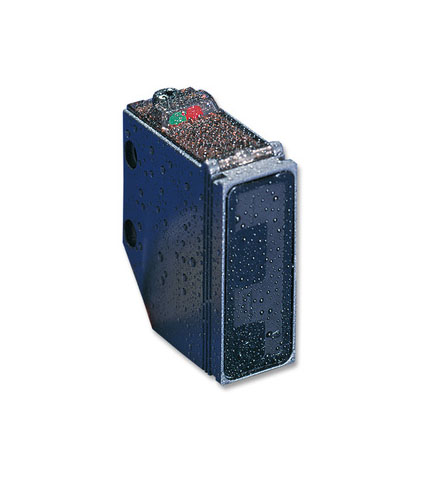

RX-LS200 sensors utilize the triangulation principle. In addition to background suppression, at constant detection distances, RX-LS200 sensors detect the sensed object precisely, regardless of object colour. There is virtually no detection degradation, even if the lens becomes dusty or dirty. With a typical response time of 1ms, the RX-LS200 is an ideal sensor for use in high-speed automatic production equipment. The robust zinc die-cast case is sealed according to IP67.
RX-LS200 sensors utilize the triangulation principle. In addition to background suppression, at constant detection distances, RX-LS200 sensors detect the sensed object precisely, regardless of object colour. There is virtually no detection degradation, even if the lens becomes dusty or dirty. With a typical response time of 1ms, the RX-LS200 is an ideal sensor for use in high-speed automatic production equipment. The robust zinc die-cast case is sealed according to IP67.
Characteristics:
| NPN output | RX-LS200 |
|---|---|
| PNP output | RX-LS200-P |
| Sensor type | Diffuse |
| Rated sensing distance | 200mm |
| Sensing range | 50 – 200mm |
| Standard detectable object |
White drawing paper 50 x 50mm |
| Detectable target | Transparent and opaque material |
| Hysteresis | < 10% of measurement range |
| Response time | Max. 1ms |
| Output relay | — |
| Output transistor | Max. 100mA |
| Emitting diode | Infrared LED |
| Rated current consumption without load | Max. 40mA |
| Housing material | Zinc die cast |
| Protection | IP67 |
| Physical size (HxWxL) | 35 x 14 x 35mm |
| Connection method | Cable, 3m |
| Operating voltage | 12 – 24V DC (± 10%) |
| Usable ambient temp. | -25°C to +60°C |
| Weight (approx.) | 85g |
 |
 |
 |
| Object detection | Positioning | Object detection |
