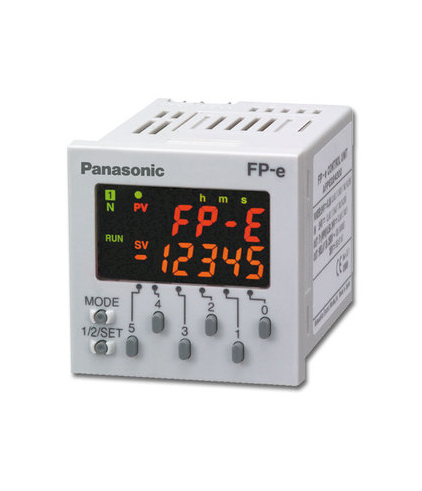

FP-e

New Born! Advanced PLC! Timer, Counter, Hour meter, Temperature Controller and PLC in a Unit

UL/C-UL , CE Approved

Share this

1.5-character, 2-line, 3-color Display

Simple characters and numerical values can be displayed.
Simple error messages as well as operation instructions and timer/counter set values can be displayed.



2.Front Operation Switch

Timer/Counter/Temperature set values can be changed using front operation switches.
The switches can also be used as input switches (X30 to X3F), which save the need for installing external switches.



3.Compact and Space-saving

Panel mountable, little space is taken up on the control panel. The size is only 48 ´48 ´ 70 mm (behind faceplate).



4.Equivalent to FP0-C14 Intelligence of Small PLCs

The FP-e has same functionality as FP0 such as pulse output and high-speed counter functions.
Other than a tool port, a unit is equipped with COM. port (RS232C/RS485) for communication.



5.Panel Mounted Type

The front panel of the FP-e is water-proof IP66.



Equipped with RS485 and RS232C interfaces

Up to 99 computer link stations are possible with RS485. (RS485 type
Up to 32 computer link stations are possible using a CNET adaptor and up to 99 are possible using a commercially available adaptor. This makes it possible to monitor operation status or perform control.



With RS232C, communication with up to two ports is possible. (RS232C type).



Can even handle temperature control

Two-point K-type thermocouple (-30 to 300°C) connection is possible. (equipped with thermocouple input)
Can be used in place of a temperature controller or used to control them.



PID instruction function
High-performance temperature control can be achieved with PID instruction.



Equipped with high-speed counter for support of 2-axis independent positioning

Pulse output function
The unit comes equipped with 2 channels for pulse output of up to 10 kHz pulses. Since these two channels can be separately controlled, the FP-e is also suitable for 2-axis independent positioning.

High-speed counter function
In single phase, the 4-channel total is 10 kHz, and in 2-phase the 2-channel total is 2 kHz total speed, making the suitable for inverter control, and so forth. (One half for the type with thermocouple input.)



Same tools used as FP Series

Control FPWIN GR
Ladder programming software is thesame as that used for the FP series

An FP-e screen display program is generated by simply inputting values in the wizard screen.



Specifications

Item Description
Power supply and I/O Specifications Power supply 24V DC
Input 24V DC ±common
Output Relay: 2 A, Transistor :0.5 A
Performance Specifications Number of controllable I/O points Control unit Standard type
Calendar timer
14 points
Thermocouple type 12 points
Front switch input 8 points
Operation speed 0.9µ/step
Internal memory EEP-ROM
Program capacity 2720 steps
Basic instructions 83
Applied instructions (from ver.1.2) 216
Operation memory Internal relay 1008 points
Timer/Counter 144 points
Data register 1660 words
Special Functions Pulse catch input 6 points
Interrupt input 6 points
Analog I/O – (Thermocouple type K, Input range: -30.0 to 300.0°C)
Volume input
High-speed counter Standard type
Calendar timer
Single-phase: 4 ch in total, Max. 10kHz
2-phase: 2 ch in total, Max. 2kHz
Thermocouple type Single-phase: 4 ch in total, Max. 5kHz
2-phase: 2 ch in total, Max. 1kHz
Pulse output Standard type
Calendar timer
1 ch x 40Hz to 10kHz
2 ch x 40Hz to 5kHz
Thermocouple type 1 ch x 40Hz to 5kHz
2 ch x 40Hz to 2.5kHz
Serial interface RS232C.RS485(AFPE224302/AFPE214322)
Network function Computer link, Modem,
Other functions Program editing during RUN, Constant scan, 4-digit password, Floating point processing, PID processing, Calendar timers ((AFPE224305/AFPE214325))
