GT03-E

New Models Added to the GT Tough Series

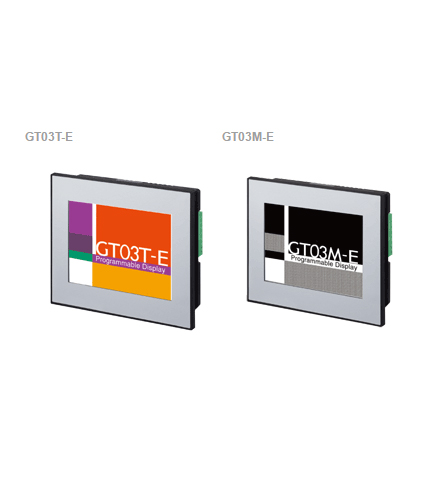

GT03-E Compact Models Debut

Share this

The wide operating temperature range allows for use in various environments.

(-20 to +55 ℃ -4 to +131 ℉ when horizontally installed or vertically installed in a portrait orientation)

Resistant to UV Rays!

The two-layer front protection sheet deduces UV rays in two-stage.

High waterproof performance allows for use in environments exposed to splashing water.

The front panel has a protective structure rated IP67.



Color type (GT03T-E): 3.1 W or less
Monochrome type (GT03M-E): 1.9 W or less

High visibility display even in bright environments!

High in brightness and contrast and anti-glare coating provides exceptional viewing characteristics.



Same resolution [320 (W) × 240 (H) dot] as the 5.7 inch model (GT32-E)

Screen data of GT32-E can be used on the smaller display.



The industry’s smallest class* body among 3.5 inch screen

*Based on research conducted by our company as of February, 2013





SD Solutions only
Panasonic can provide
Links and expansion via SD

As small-size touch panels have significantly improved their image quality, easy to read displays with sharp characters are no longer special features these days.
Instead, programmable displays will evolve with maximum “user-friendliness” in various applications with PCs or other devices.
As shown below, our touch panels exchange and store data using SD memory card, data for many applications.

SD Solutions

PLC program transfer without the use of a PC

It is possible to modify PLC ladder programs as well as the GT screen programs by using an SD / SDHC memory card.
SD / SDHC memory card enables everyone to easily modify programs.

PLC program transfer without the use of a PC



SD logging function to produce data “Visualization”

Capable of automatically collecting electrical power readings of Eco-POWER METERS and displaying them in a real time graph, allowing users to take quick actions for solutions.

  • The GT unit can collect data, such as electrical power on an SD / SDHC memory card, and display the log data in a real time graph.
    You can make data “Visualization” without using a PC as a display or Data logger for collecting data.
  • One bar graph has a maximum of eight bars and can be combined with line graphs.
  • The following three conditions can be selected to trigger an operation to save log data.
    (1) Specified time (2) Specified cycle (1 sec. to 24 hrs.) (3) Specified condition
  • Large volumes of data can be saved on an SD / SDHC memory card, which can be carried with you.

SD logging function to produce data “Visualization”



SD recipe function

SD recipe function

For high-mix production, recipe data up to 64 types and 4,096 devices in total, can be easily set on a PC. The created recipe data is saved on an SD / SDHC memory card, and the specified data can be written or read from a PLC.



Saving alarm history data on an SD / SDHC memory card

Saving alarm history data on an SD / SDHC memory card

The alarm history data stored in the GT built-in memory can be saved on an SD / SDHC memory card, making it possible to easily control problems on a PC.



Highly flexible screen design!

Highly flexible screen design!

GT series displays use an analog-touch panel where locations of parts and characters can be adjusted in increments of one dot. The adoption of the Windows® font has widened the character size selection (10 to 240 dots), making the screen design more flexible.
*The maximum size varies depending on the model.



Graph function

Graph function

One bar graph has a maximum of eight bars and can be combined with line graphs.



Portrait display ideal for narrow spaces

Portrait display ideal for narrow spaces

The unit can display screens in portrait orientation and can therefore be installed in narrow spaces, expanding system design possibilities and contributing to size reduction.
The portrait display is also ideal for slim equipment without enough space to install a display.



Flow display function

Flow display function

A flowing message of up to 64 characters (two-byte) can be displayed at the bottom of the screen. (128 messages)



Multi-function switches

Multiple operations are possible. For example, screens can be switched by setting multiple values.



4,096-color parts libraries

4,096-color parts libraries

3D-design buttons with higher visibility and operability are available.



Newly equipped with an FP monitoring function

The setting status and data of our FP series PLC connected to GT can be monitored and edited on the GT screen. This function allows you to check equipment operations in actual environments without creating screens in advance or connecting the unit to a PC and to increase the efficiency of equipment startup and daily maintenance work.
Notes:
1)The FP monitoring function is available for FP-X, FPΣ, FP0R, FP2, FP2SH, FP0, and FP-e.
2)The FP monitoring function can be used only when the FP monitoring screen is set (stored) in GT. Note that the FP monitoring screen uses the user’s memory (F-ROM) of GT.



Multiple GT displays can be connected to our FP series PLC.

GT link function
Up to 32 GT displays can be connected to one PLC unit without communication programs. The same screen operation is possible at a conveyor line or other remote locations, and the number of PLC units can be reduced, cutting the production process costs.

GT link function

Notes:

1)Our FP series PLC
2)As the number of connected units increases, the response slows down. Check the speed in the actual line.
3)The response time becomes relatively longer than those in the case of one-to-one connection.
Please evaluate whether an safficient performance can be obtained in designing the system.

Connectivity with multiple PLCs
Up to 31 PLC units can be connected to one GT unit. Progress in multiple production lines can be centrally monitored and controlled via one GT unit.

Connectivity with multiple PLCs

Notes:

1)This function cannot be used for a data link between PLCs.
2)The response time becomes relatively longer than those in the case of one-to-one connection.
Please evaluate whether an safficient performance can be obtained in designing the system.



Enhanced security with password protection

Password protection and operation security functions protect the data asset in the display unit and control the authorization for operation.

Password protection function
The screen data upload operation can be restricted by using passwords to protect the data asset in the display unit.

Password protection function

Operation security function
Up to 64 operators can set individual passwords, and up to 16 levels of restrictions can be set on displays and operations for each part. The registered users and passwords can be changed on the display unit.

Operation security function



High-efficiency operation with through function

This function allows operators to simultaneously carry out the transfer of screen data of a GT series display and the debugging of our FP series PLC connected to the display.
GT32T1 supports Ethernet connection, which allows the through function to be controlled from a remote location.

High-efficiency operation with through function





Easy-to-switch language

Easy-to-switch language

Conventionally, screens were created for each language. With this new language switching function, data can be registered in multiple languages (up to 16) for each part. The characters can be easily edited with Microsoft Excel® and then imported.



Write device function

Write device function

This function modifies the PLC data or turns bits on/off according to the PLC status or the screen No. Now four arithmetic operations between devices are also possible

Specifications

Product name GT03M-E GT03T-E
Part No. AIG03MQ03DE AIG03MQ05DE AIG03TQ13DE AIG03TQ15DE
Communication port RS232C RS422 / RS485 RS232C RS422 / RS485
Power supply 24V DC
Operating voltage range 21.6 to 26.4 V DC
Power consumption 1.9 W or less 3.1 W or less
Ambient temperature -20 to +60 ℃ -4 to +140 ℉(Note 1)
Ambient humidity 10 to 90 % RH(at 25 ℃ 77 ℉), No condensation
Storage temperature -20 to +60 ℃ -4 to +140 ℉
Storage humidity 10 to 90 % RH(at 25 ℃ 77 ℉), No condensation
Vibration resistance 5 to 8.4 Hz, amplitude 3.5 mm 0.138 in, 8.4 to 150 Hz, acceleration 9.8 m/s2, 10 sweeps each in X, Y and Z directions (1 octave / min.)
Shock resistance 147m/s2, 3 times in each of the X, Y and Z directions
Superposed noise suppression 1,000 V [P-P] or more, pulse width of 50 ns, 1 μs between power supply terminals (by a noise simulator)
Environmental resistance IP67 (in the initial stages), Dust-proof and drip-proof from the front of the panel only (Rubber packing is attached to the panel contact surface.) (Note 2)
Weight 170 g approx.
Display Display device TFT monochrome LCD TFT color LCD
Resolution 320(W) × 240(H)dots
Display color 2 colors(black / white, 16-gray scale) 4,096 colors
Displayable area 70.6(W) × 52.9(H)mm 2.780(W) × 2.083(H)in
Backlight White LED
Functions Font types Fixed (GTWIN) : 8 x 8, 16 x 8, and 16 x 16 dots, Characters can be displayed in the 1, 2, 4, or 8 times width or height
True Type (GTWIN): 10 to 240 dots, Windows®: 10 to 240 dots
Languages Japanese, English, Simplified Chinese, Traditional Chinese, Korean, German, Italian, Spanish, French, Turkish, Russian and Vietnames
Graphics Straight lines, Continuous straight lines, Squares, Circles, Ovals, Arcs, Elliptic arcs, Fan shapes, Elliptic fan shapes, Beveled squares, and Bitmaps
Number of screens (Note 3) 230 screens approx. 180 screens approx.
Screen setting No. Base screens: No. 0 to 3FF, Key board screens: No. 0 to 7, Login screens: No. 0 to F
Part functions Messages, Lamps, Switches, Function switches, Data, Bar graphs, Clocks, Keyboards, Line graphs, Alarm list, Alarm record, and Custom parts (messages, lamps, switches)
Other functions Recipe, Flow display, Write device, Multiple PLC connection, FP monitor, Language switching, GT link, Operation security, Data logging, and SD recipe (Note 4)
Clock function Displayed by referencing PLC clock Provided with a built-in clock. (Can also refer to and display a PLC clock.) * Buy the backup battery (AFPX-BATT).
Backlight brightness adjustment Can be set on the menu screen, via the GT configuration screen of GTWIN, or via PLC.
Contrast adjustment Not adjustable
Buzzer Installed
Automatic communication settings The communication speed (baud rate) is automatically changed if there is no response from the target equipment.
Through function GT connected between PC and PLC allows PLC to be debugged without a direct connection to a PC.
Screen creation Dedicated software should be used. Applicable OS: Windows® 2000 / XP / Vista / 7 / 8 (Note 5)
Touch key resolution Free layout (8 dots min.)
Touch key operation force 0.8 N or less
Touch key life 1 million operations or more (at +25 ℃ +77 ℉)
COM. port Communication standard Conforms to RS232C Conforms to RS422 / RS485 Conforms to RS232C Conforms to RS422 / RS485
External communication conditions Baud rate: 9,600 bps, 19,200 bps, 38,400 bps, 57,600 bps, and 115,200 bps
Data bits: 7 or 8 bits, Parity: None, Odd, Even, Stop bits: 1 bit
Protocol Our FP series supported, General-purpose serial interface supported, and Other companies’ PLC supported (Refer to the "PLC COMPATIBILITY TABLE" for manufacturers and models.)
Connector Connector terminal block (8 pins)
Screen data transfer interface Communication standard USB1.1
Protocol Our dedicated protocol
Connector USB Mini B
User’s memory Memory F-ROM
Capacity 6 Mbyte 12 Mbyte
Memory backup Memory SRAM
Backup battery Lithium battery (replaceable) AFPX-BATT (Does not include with product.)

Notes:

1)Please use within a temperature range of – 20 to + 55 ℃ – 4 to + 131 ℉ when horizontally installed and vertically installed in a portrait orientation and when using battery.

2)This protective structure condition applies to the front surface of the installed panel. This condition does not guarantee usage in all environments provided by users. When reattaching the panel, replace the waterproof packing.

3)The number of screens that can be registered varies according to the registered contents.

4)The data logging and SD recipe functions are available with only models equipped with an SD / SDHC memory card slot.

5)The 64-bit version is not supported except for Windows® 7 and 8.
