Single axis type
Direct installation using a hexagonal wrench
UL/C-UL , CE Approved
CE : EMC Directive
UL : Recognition
Obstructions can be avoided and installation from above can be done much more easily using a hexagonal wrench. This also eliminates wasted installation space and contributes to a smaller installation footprint.
Because the bolts can be turned from directly above, embedding the sensor heads into narrow spaces is possible. In addition, the flat installation leaves no worries for danger of objects striking against the sensor and damaging it.
During maintenance, the sensor head needed to be removed can be easily removed from directly above.
Space saving during installation.
Because the dead zone caused by the nut is eliminated, the narrowed-down thickness after installation contributes to space saving.
Sensor heads can be turned after installation
After installation, you can alter the cable direction with the pressure port still secured in place. In addition, the cable does not get twisted during installation.
Separate analog voltage output for each sensor head
The analog voltage output from the sensor head can be picked up directly.
3 types of pressure range
Stainless steel pressure ports come in 3 shapes.
Equipped with a 30 mm 1.181 in square compact-sized dual display.
“Current value” and “Threshold value” can be checked at the same time.
The threshold value can be changed in RUN mode directly.
Reduced tact time. Response time contributes to even greater productivity.
The setting levels are clearly separated into “RUN mode” for operation settings that are carried out daily, “MENU SETTING mode” for basic settings, and “PRO mode” for special and detailed setting. These make setting operations easy to understand and easy to carry out.
The main display color switches between green and red in accordance with the ON / OFF status of output during RUN mode. In addition, the display always appears orange while setting is in progress, so that the status of the controller can be viewed at a glance.
Controllers can be connected to a master controller one by one, and a copy of the setting details for the master controller can be transmitted as data to the slave controllers. If making the same settings for multiple controllers, this prevents setting errors from occurring with the other controllers and also reduces the number of changes required to instruction manuals when equipment designs are changed.
The controller will automatically recognize sensor heads when they are connected, even for sensor heads with different rated pressure ranges. There is no need to use the controller to change settings.
Equipped with two independent comparative outputs, and separate sensing modes can be selected for each of them.
Two comparative outputs are provided, so that one of the outputs can be used as a warning output. In addition, if an output is not being used, it can be disabled.
If the reference pressure of the device changes, the autoreference function partially shift the comparative output judgment level by the amount that the reference pressure shifts, and the remote zero-adjustment function can reset the display value to zero via external input. These functions are ideal for places where the reference pressure fluctuates wildly, or where fine settings are desired.
The sub display can be set to indicate any other desired values or letters apart from the threshold value. This eliminates the need for tasks such as affixing a label to the device to indicate the normal pressure value.

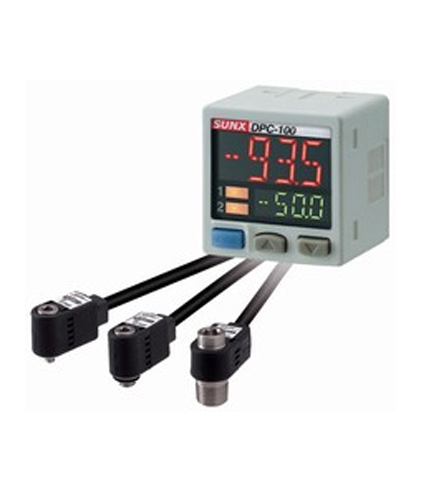

The DPC-100 setting details appear in the digital display.
Because the settings are in numeric form that can be easily understood, it is useful for times such as when receiving technical support by telephone.
This mode lowers the display luminance to cut power consumption by approximately 30 %. The displays can also be turned off completely to achieve a power saving of approximately 40 %.
An exclusive mounting bracket (MS-DP1-2) that is suitable for 1 to 6 mm 0.039 to 0.236 in panel thickness is available.
Space saving can also be obtained if an L-shaped mounting bracket is used
The accessory connector attached cable (2 m 6.562 ft) can be connected easily with one-touch connection.
* Options: 5 m 16.404 ft type is also available.
Commercially-available connectors can be used for cable connections. Only the required length of cable needs to be used, which contributes to a reduced amount of wastage for unneeded cable.
| Type | Compound pressure | Positive pressure | Vacuum pressure | ||||||
|---|---|---|---|---|---|---|---|---|---|
| ±100 kPa type | 1 MPa type | -101 kPa type | |||||||
| Model No.(Note 3) | DPH-101(-R) | DPH-101-M3(-R) | DPH-101-M5(-R) | DPH-102 | DPH-102-M5(-R) | DPH-103(-R) | DPH-103-M3(-R) | DPH-103-M5(-R) | |
| Type of pressure | Gauge pressure | ||||||||
| Rated pressure range | -100.0 to +100.0 kPa | 0 to +1.000 MPa | 0 to -101.0 kPa | ||||||
| Pressure withstandability | 500 kPa | 1.5 MPa | 500 kPa | ||||||
| Applicable fluid | Air, non-corrosive gas | ||||||||
| Supply voltage | 12 to 24 V DC ± 10 % Ripple P-P 10 % or less | ||||||||
| Current consumption | 15 mA or less | ||||||||
| Analog voltage output | (Note 4)
Output voltage: 1 to 5 V (over rated pressure range) |
||||||||
| Protection | IP40 (IEC) | ||||||||
| Ambient temperature | 0 to +50 ℃ +32 to +122 ℉ (No dew condensation allowed), Storage: -10 to +60 ℃ +14 to +140 ℉ | ||||||||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | ||||||||
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure | ||||||||
| Insulation resistance | 50 MΩ, or more, with 500 V DC megger between all supply terminals connected together and enclosure | ||||||||
| Vibration resistance | 10 to 500 Hz frequency, amplitude 3 mm 0.118 in or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each | ||||||||
| Shock resistance | 1,000 m/s2 acceleration (100 G approx.) in X, Y and Z directions for three times each | ||||||||
| Temperature characteristics | Over ambient temperature range 0 to +50 ℃ +32 to +122 ℉: within ±2 % F.S. of detected pressure at +25 ℃ +77 ℉ | ||||||||
| Pressure port | DPH-10□(-R): R1/8 male thread + M5 female thread, DPH-10□-M3(-R): M3 male thread (for installing gasket) DPH-10□-M5(-R): M5 male thread (for installing gasket) |
||||||||
| Material | Front case: PBT, Rear case: PBT (glass fiber reinforced), Pressure port: Stainless steel (SUS303), O-ring: NBR Pressure element: Silicon diaphragm, PPS |
||||||||
| Connecting method | Connector | ||||||||
| Cable | 0.2 mm2 4-core oil resistant cabtyre cable (Models with “-R” affixed to the Model No. have flexible, oil-resistant cabtyre cable) | ||||||||
| Cable extension | Extension up to total 10 m 32.808 ft is possible with 0.2 mm2, or more, cable. | ||||||||
| Weight | Net weight | DPH-10□(-R): Head 10 g approx. / Cable 40 g approx., DPH-10□-M3/M5(-R): Head 6 g approx. / Cable 40 g approx. | |||||||
| Gross weight | DPH-10□(-R): 80 g approx., DPH-10□-M3/M5(-R): 70 g approx. | ||||||||
| Accessory | Connector (e-CON): 1 pc. | ||||||||
Note:
| Type | NPN output type | PNP output type | |
|---|---|---|---|
| Model No. | DPC-101 | DPC-101-P | |
| Applicable sensor head | DPH-101□, DPH-102□, DPH-103□ | ||
| Rated pressure range (Note 2) |
Compound pressure: -100.0 to +100.0 kPa, Positive pressure: 0 to +1.000 MPa, Vacuum pressure: 0 to -101.0 kPa |
||
| Set pressure range (Note 2) |
Compound pressure: -199.9 to +199.9 kPa (-1.999 to +1.999 kgf/cm2, -19.98 to +19.98 psi, -1.999 to +1.999 bar, -1510 to +1537 mmHg, -59.4 to +60.5 inHg) Positive pressure: -1.050 to +1.050 MPa (-10.71 to +10.71 kgf/cm2, -152.2 to +152.2 psi, -10.50 to +10.50 bar) Vacuum pressure: +101.3 to -101.3 kPa (+1.033 to -1.033 kgf/cm2, +14.70 to -14.70 psi, +1.013 to -1.013 bar, +760 to -760 mmHg, +29.9 to -29.9 inHg) |
||
| Supply voltage | 12 to 24 V DC ± 10 % Ripple P-P 10 % or less | ||
| Power consumption | Normal operation: 960 mW or less (Current consumption 40 mA or less at 24 V supply voltage) ECO mode (STD): 720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode (FULL): 600 mW or less (Current consumption 25 mA or less at 24 V supply voltage) Excluding the current consumption of sensor head and analog output current |
||
| Sensor head supply voltage | Same as supply voltage | ||
| Comparative outputs (Comparative output 1, 2) |
NPN open-collector transistor (2 outputs) ・Maximum sink current: 100 mA ・Applied voltage: 30 V DC or less (between comparative output and 0 V) ・Residual voltage: 2 V or less (at 100 mA sink current) |
PNP open-collector transistor (2 outputs) ・Maximum source current: 100 mA ・Applied voltage: 30 V DC or less (between comparative output and +V) ・Residual voltage: 2 V or less (at 100 mA source current) |
|
| Output operation | NO / NC, selectable by key operation | ||
| Output modes | EASY mode / Hysteresis mode / Window comparator mode | ||
| Hysteresis | Minimum 1 digit (variable) (however, 2 digits when using psi unit) | ||
| Repeatability | With vacuum / positive pressure type connected: within ±0.2 % F.S. (±2 digits) With compound pressure type connected: within ±0.2 % F.S. (±4 digits) |
||
| Response time | 0.5 ms, 1 ms, 2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation | ||
| Short-circuit protection | Incorporated | ||
| Analog output | <Analog voltage output> ・Output current: 1 to 5 V DC ・Zero point: within 1 V ± 0.5 % F.S. (vacuum / positive pressure type) within 3 V ± 0.5 % F.S. (compound pressure type) ・Span: within 4 V ± 0.5 % F.S. ・Linearity: within ±0.1 % F.S. ・Output impedance: 1 kΩ approx. <Analog current output> |
||
| Inputs | Sensor head input | Input voltage range: 1 to 5 V DC (over rated pressure range) | |
| External input (Auto-reference function/Remote zero-adjustment function) |
ON voltage: +0.4 V DC or less OFF voltage: +5 to +30 V DC, or open Input impedance: 10 kΩ approx. Input time: 1 ms or more |
ON voltage: +5 V to +V DC OFF voltage: +0.6 V DC or less, or open Input impedance: 10 kΩ approx. Input time: 1 ms or more |
|
| Display | 4 digits + 4 digits 3-color LCD display (Display refresh rate: 250 ms, 500 ms, 1,000 ms, selectable by key operation) | ||
| Displayable pressure range | Vacuum pressure: +5.1 to -101.3 kPa, Positive pressure: -0.050 to +1.020 MPa, Compound pressure: -101.3 to +105.0 kPa |
||
| Operation indicator | Orange LED (Comparative output 1 operation indicator, comparative output 2 operation indicator: Lights up when each comparative output is ON) | ||
| Protection | IP40 (IEC) | ||
| Ambient temperature | -10 to +50 ℃ +14 to +122 ℉ (No dew condensation or icing allowed), Storage: -10 to +60 ℃+14 to +140 ℉ | ||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | ||
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure | ||
| Insulation resistance | 50 MΩ, or more, with 500 V DC megger between all supply terminals connected together and enclosure | ||
| Vibration resistance | 10 to 500 Hz frequency, amplitude 3 mm 0.118 in or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each (when panel mounting bracket is mounted : 10 to 150 Hz frequency, amplitude 0.75 mm 0.030 in or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) | ||
| Shock resistance | 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions for three times each | ||
| Temperature characteristics | Within ±0.5 % F.S. (ambient temperature range based on +20 ℃ +68 ℉) | ||
| Material | Enclosure: PBT (glass fiber reinforced), LCD display: Acrylic, Mounting threaded part: Brass (nickel plated), Switch part: Silicone rubber | ||
| Connecting method | Connector | ||
| Cable length | Total length up to 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. | ||
| Weight | Net weight: 25 g approx. (excluding connector attached cable), Gross weight: 140 g approx. | ||
| Accessories | CN-66A-C2 (Connector attached cable 2 m 6.562 ft), Pressure unit label: 1 set | ||
Note
:
