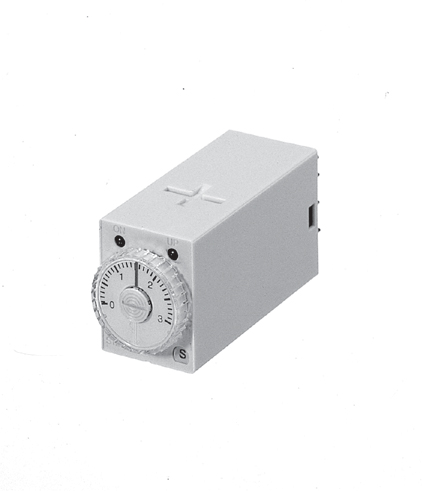

S1DX Timers

UL/C-UL , CE , Lloyd Approved

Share this

1.3 operation modes added for fuller lineup

Now, operation modes include not only On Delay, but Flicker, One Shot, and One Cycle modes as well.



2.Operation can be checked easily

Power supply: Green
Operation: Orange LED display



3.Output contact relay construction

Available contact relay output types: 2C and 4C



4.Panels can be installed

In addition to conventional DIN rail installation, panels can be installed using an mounting frame.The compact timer size means that larger panels can be used.



5.Output terminal

A plug-in terminal and printed circuit terminal are provided.



6.Easier than ever to read and use

Large-sized transparent dial makes setting time easy!



7.Compliant with UL, c-UL and CE.



Operation Mode and Color

Operation type Description Time chart Operation mode
Indicator color
Power ON-relay Timing operation will start when the power is supplied, and the control output turns on after the setting time.
Power Fricker When the power is supplied, the control output turns on after the setting time and then turns off after the setting time.
This operation is repeated sequentially.
Power One-shot When the power is supplied, control output turns on for the setting time.
Power One-cycle When the power is supplied, the control output turns on for one pulse after the setting time.
One pulse time : Approx. 1 s

Scale Intervals

Time type Scale intervals
0.5 0.05 (0.02 in a range of 0.1 to 0.5)
1 0.05
3 0.1
5 0.2
10 0.5
30 1
60 2

Specifications


Type AC operating type DC operating type
Rated operating voltage 24V, 100 to 120V, 200 to 220V, 220V to 240V 12V, 24V
Operating voltage range 80 to 110% of rated operating voltage
Rated frequency 50/60Hz common
Power supply ripple Full-wave rectified (Approx. 48%)
Rated power consumption Max. 3VA Max. 2W
Rated control capacity (resistive) [Timed -out 2 Form C]: 7A 250V AC
[Timed -out 4 Form C]: 5A 250V AC
UL/CSA rating [Timed -out 2 Form C]: 7A 125 AC, 6A 250V AC, 1/6HP 125, 250V AC, PILOT DUTY C300
[Timed -out 4 Form C]: 5A 250V AC, 1/10HP 125, 250V AC, PILOT DUTY C300
Output arrangement Timed-out 2 Form C, Timed-out 4 Form C
Initial contact resistance, max. (By voltage drop 6V DC 1A) 100mohm
Expected life (min. operations) Mechanical 107
Electrical (resistive) 2×105
Initial insulation resistance (At 500V DC) Min. 100Mohm Between live and dead metal parts/input and output Between contact sets Between contacts
Initial breakdown voltage 1500Vrms for 1min Between live and dead metal parts/input and output 1500Vrms for 1min Between contact sets 1000Vrms for 1min Between contacts
Shock resistance Functional Min. 98m/s2(4 times on 3 axes)
Destructive Min. 980m/s2(5 times on 3 axes)
Vibration resistance Functional 10 to 55Hz: 1 cycle/min double amplitude of 0.5mm (10min on 3 axes)
Destructive 10 to 55Hz: 1 cycle/min double amplitude of 0.75mm (1h on 3 axes)
Max. temperature rise 70°C/ 158 ° F
Ambient temperature -10 to 50°C/ +14 to 122 ° F
Ambient humidity Max. 85% RH

*Power one-shot type of 1 s type: +(2% + 10 ms)
