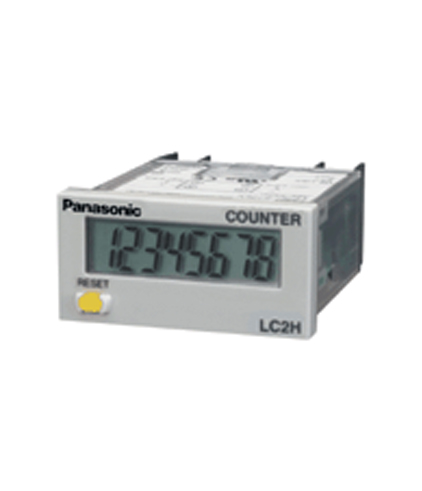

LC2H Total Electronic Counters

DIN HALF SIZE LCD COUNTER

UL/C-UL , CE Approved

Share this
Panel mounting type
One-touch installation type
Panel mounting type
Installation frame type
PC board mounting type

1.8.7 mm/ .343 inch Character Height (previously 7 mm)

Easy-to-read character height increased from 7 mm to 8.7 mm/ .276 inch to .343 inch.



2.Plenty of Digits



3.Counting Speed Switchable between 2 kHz and 30 Hz

4.Panel Mounting Type Features 2 Installation Methods

Comes with very easy one-touch installation type and also installation frame type that uses the bracket on the timer/counter.
Choose a method that suits the application.



5.Battery Replacement Easy on Environment

To replace battery simply remove body for the one-touch installation type, and remove battery lid for the installation frame type.



6.Screw Terminals Designed for Safety

Built in finger protection.



7.Panel Covers Replacable(Standard color is ash gray.)

Change the panel design by replacing with a black panel cover.



8.Conforms to IP66 Protective Construction (Only installation frame type.) (Front panel surface)



9.Input Methods

  • 1.Non-voltage input method
  • 2.Voltage input method
  • 3.Free voltage input method





10.Backlight Type Added to Series and Now 2-color Switchable (green/red)

Easy viewing even in dark places and switchable between green and red(Voltage input type).



11.Compliant with UL, c-UL and CE.

Explanation of Operation

Note) * Count becomes “1” when the reset input is turned OFF while the count signal is being input.

1.Counting takes place when the count input signal is ON.

2.Counting resumes again when the count value reaches 99999999 (full scale value) and then returns to “0” with a new count input.

3.No measurement takes place when a reset is input.

  • 1.When reset is ON, resetting takes place and the count becomes “0”.
  • 2.Press the front reset button when you want to reset manually (only panel installation type).

Note)Be aware that battery life will decrease if the count input or reset input are left ON.



Specifications

Panel Mounting Type

Type Standard type Backlight type Standard type
Item Non-voltage input Voltage input Voltage input Free voltage type
No. digits 8 digits
External power supply Not required (built-in battery)
Max. counting speed 2 kHz/30 Hz (Switchable by switch) 30 Hz (Note 2)
Count input Min. input signal width (ON: OFF = 1:1) 0.25 ms/16.7 ms (Switchable by switch) 16.7ms
Input method (signal) Non-voltage input using contacts or open collector connection High level: 4.5 to 30 V DC
Low level: 0 to 2 V DC
High level:24 to 240 V AC/DC
Low level:0 to 2.4 V AC/DC
Input impedance When shorted:Max. 10 kΩ
When open:Max. 750 kΩ
Approx. 4.7kΩ
Residual voltage Max. 0.5 V
Reset input Min. input signal width 200ms
Input method (signal) Non-voltage input using contacts or open collector connection High level: 4.5 to 30 V DC
Low level: 0 to 2 V DC
Non-voltage input using contacts or open collector connection
Input impedance When shorted:Max. 10 kΩ
When open:Max. 750 kΩ
Appox. 4.7 kΩ When shorted:Max. 10 kΩ
When open:Max. 750 kΩ
Residual voltage Max 0.5 V Max 0.5 V
Display method 7-segment LCD 7-segment LCD 7-segment LCD
With green/red backlight
7-segment LCD
Breakdown voltage (initial) Between charged and uncharged parts: 1,000 V AC for 1 minute. Between charged and uncharged parts: 2,000 V AC for 1 minute.
Insulation resistance (initial) Min. 100 MΩ (measured at 500 V DC) Measurement location same as for break down voltage.
Backlight power 24 V DC (±10%)
Protective construction (Note 3) IEC Standard IP66 (only panel front: when using rubber gasket)
Accessories (Note 3) Rubber gasket, mounting bracket
Battery life 7 years (at 25°C/ 77°F) Note 1 6 years (at 25°C/ 77°F)

Notes:-

  1. The value given for battery life is calculated based on continuous operation (count input signal ON/OFF = 1:1), therefore, this value is not guaranteed. Also, battery life is decreased 30% when operation is continuous with 2 kHz count inputting in 2 kHz mode.
  2. Operation is at 25 Hz when using 24 V AC
  3. Only for installation frame type



PC Board Mounting Type

Type PC board mounting type
Item
Input method Non DC voltage input
No. digits 8 digits
Rated operation voltage 3 V DC
Allowable operation voltage range 2.7 to 3.3 V DC
Current consumption Max. 30 ?A (max. 250 ?A during reset input)
Max. counting speed 30Hz 2kHz
Count input Min. input signal width (ON: OFF = 1:1) 16.7ms 0.25ms
Input method Non-voltage input using contacts or open collector connection
Input impedance When shorted: Max. 10 kΩ
When open: Max. 750 kΩ
Residual voltage Max. 0.5 V
Reset input Min. input signal width 10ms
Input method Non-voltage input using contacts or open collector connection
Input impedance When shorted: Max. 10 Ω
When open: Max. 750 Ω
Residual power Max. 0.5 V
Break down voltage (initial) Between charged and uncharged parts: 1,000 V AC for 1 minute.
Insulation resistance (initial) 1Min. 100 MΩ (measured at 500 V DC) Measurement location same as for break down voltage.



Common

Type Panel mounting/PC board mounting types
Item
Vibration resistance Functional 10 to 55 Hz (1 cycle/min.), single amplitude: 0.15 mm .006 inch (10 min. on 3 axes)
Destructive 10 to 55 Hz (1 cycle/min.), single amplitude: 0.375 mm .015 inch (1 hr. on 3 axes)
Shock resistance Functional Min. 98 m/s2 (4 times on 3 axes)
Destructive Min. 294 m/s2 (5 times on 3 axes)
Operation temperature –10 to +55°C/ +14 to +131°F (without frost or dew)
Storage temperature –25 to +65°C/ –13 to +149°F (without frost or dew)
Ambient humidity 35 to 85% RH (non-condensing)
