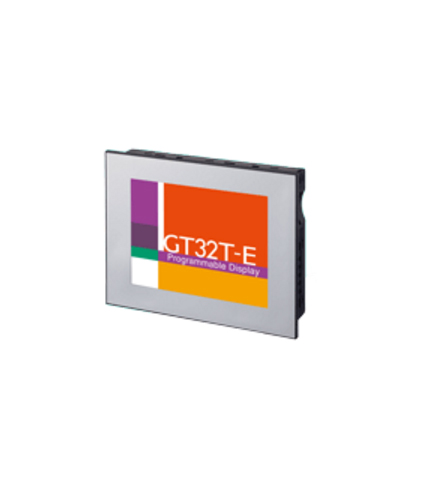

Introducing the GT32-E Series with Excellent Environmental Resistance

UL/C-UL , CE Approved
CE : EMC Directive
UL : Approved Listing

Share this

5.7 inch

5.7 inch, 4,096 colors TFT color LCD equipped with long life LED backlight

5.7 inch, 16-gray scale TFT monochrome LCD equipped with long life LED backlight

Common features

  • Superior visibility even in sunlight
    The brightness, contrast ratio, and viewing angle have been improved.
  • Wide range of operating temperature that covers outdoor use
    The improved environmental resistance allows for use in a wider operating temperature range of -20 °C to +60 °C -4 ℉ to +140 ℉.
  • UV Resistant, Anti-glare front panel
    A front protection layer reduces the intensity of UV rays and has an anti-glare coating.
  • Impressive water resistance makes usage possible in areas prone to water contact.
    The front panel of the GT-E series is IP67 rated with added protection applied to the rear of the unit for a more rugged overall construction.
  • Built-in SD/SDHC memory card slot*1
    Easy to copy, back up, and restore screen data.
  • Integrated USB Interface
    You can connect your PC and GT32-E using your USB cable to transfer screen data.
    When used with our FP series PLC, this display supports the pass through function, which allows simultaneous debugging of the PLC and the display.
  • Transformer-isolated power supply
    The isolated power supply enhances the reliability.

*1 Class 10 Compatible with a card of up to 32 GB.
*2 Note that the communication and power supply connector projects an additional 1.5 mm 0.06 in.
Also take the cable diameter must be taken into account.


Superior visibility even in sunlight

  • High contrast LCD
    Achieved higher contrast and visibility.
  • High brightness backlight
    Achieved greater brightness and visibility than the conventional model.


Anti-glare, High visibility display

A front protection layer has an anti-glare coating to prevent unwanted reflections
(Fingerprints are made less noticeable even in outdoor use)


Comparison of reflection


No risk of product deterioration due to UV exposure

– The front sheet is made of a material that does not transmit UV rays.
– A combination of a UV cutting layer and a UV absorbing layer performs two-stage UV blocking.
The LCD and touch panel can be protected from deterioration.

■UV ray transmittance performance


Excellent water resistance

  • The front panel has a protective structure rated IP67.
    Safe to use outdoors or in a location exposed to splashing water.
  • Added protection has been applied to the rear of the unit for a more rugged overall construction.


Wide operating temperature range

  • Usable in a range of -20 °C to +60 °C -4 ℉ to +140 ℉
    (-20 °C to +55 °C -4 ℉ to +131 ℉ when horizontally installed)
  • The TFT LCD can quickly switch screens even at a low temperature.
  • The life of the LED backlight does not decrease even at a low temperature.
  • It is not necessary to prepare a heater for use at a low temperature.


Reduced power consumption

  • Color type(GT32T-E) : 7.2 W or less
  • Monochrome type (GT32M-E) : 4.8 W or less

SD Solutions only Panasonic can provide

Links and expansion via SD
As small-size touch panels have significantly improved their image quality, easy to read displays with sharp characters are no longer special features these days. Instead, programmable displays will evolve with maximum “user-friendliness” in various applications with PCs or other devices.
As shown below, our touch panels exchange and store data using SD memory card, data for many applications.



PLC program transfer without the use of a PC

It is possible to modify PLC ladder programs as well as the GT screen programs by using an SD / SDHC memory card.
SD / SDHC memory card enables everyone to easily modify programs.
* Our FP series, excluding FP7.


SD card data transfer function

Log and other data saved on a SD memory card inserted into the GT’s onboard SD memory card slot can now be sent to a PC using a USB connection.

Installation on the PC of GT_SD_Reader software is required. This software is installed simultaneously with Terminal GTWIN (Ver. 2.E1 and higher).
The GT unit firmware must be a version that supports this function. If you are using a version that does not support this function, please upgrade by downloading it from our website.

SD logging function to produce data “Visualization”

  • Capable of automatically collecting electrical power readings of Eco-POWER METERS and displaying them in a real time graph, allowing users to take quick actions for solutions.
    The GT unit can collect data, such as electrical power on an SD / SDHC memory card, and display the log data in a real time graph.
    You can make data “Visualization” without using a PC as a display or Data logger for collecting data.
  • One bar graph has a maximum of eight bars and can be combined with line graphs.
  • The following three conditions can be selected to trigger an operation to save log data.
    (1) Specified time (2) Specified cycle (1 sec. to 24 hrs.) (3) Specified condition
  • Large volumes of data can be saved on an SD / SDHC memory card, which can be carried with you.


SD recipe function

For high-mix production, recipe data up to 64 types and 4,096 devices in total, can be easily set on a PC. The created recipe data is saved on an SD / SDHC memory card, and the specified data can be written or read from a PLC.


Saving alarm history data on an SD / SDHC memory card

The alarm history data stored in the GT built-in memory can be saved on an SD / SDHC memory card, making it possible to easily control problems on a PC.


Highly flexible screen design!

GT series displays use an analog-touch panel where locations of parts and characters can be adjusted in increments of one dot. The adoption of the Windows® font has widened the character size selection (10 to 240 dots), making the screen design more flexible.
*The maximum size varies depending on the model.。

“Analog-touch design”


“TrueType fonts”

The adoption of the Windows®font has made it possible to choose a font focusing on the screen image and visual quality.


Graph function

One bar graph has a maximum of eight bars and can be combined with line graphs.


Portrait display ideal for narrow spaces

The unit can display screens in portrait orientation and can therefore be installed in narrow spaces, expanding system design possibilities and contributing to size reduction.
The portrait display is also ideal for slim equipment without enough space to install a display.


Flow display function

A flowing message of up to 64 characters (two-byte) can be displayed at the bottom of the screen. (128 messages)


Multi-function switches

Multiple operations are possible. For example, screens can be switched by setting multiple values.

4,096-color parts libraries

3D-design buttons with higher visibility and operability are available.

FP monitoring function [FP2SH / FP0R / FP-Σ / FP-X / FP-X0 / FP-e / FP0 / FP2]

*Excluding FP7
Five convenient features of GT series for improved compatibility with our FP series of PLCs

[1] Device monitor (Display and change values of FP series devices. Three different modes available.)
(1)Easy Monitor:Use this mode when you want to monitor something. Display is continuous when one device is specified and the device can be changed.
(2)Entry Monitor:Use this mode when you want to monitor multiple devices. You can register devices you want to display one-by-one and you can change them.
(3)Forced On/Off:Use this mode feature to forcibly turn output on and off. You can set devices one-by-one for which you want to control output.
[2] System register monitor (Display and change of system register values.)
You can specify the system register number, display the value, and change it.
[3] Shared memory monitor (Display shared memory values.)
You can specify the slot number, bank number and address, and display the value. You cannot change the value.
[4] Error monitor (Display an error occurring in the FP series PLC.)
You can display the self-diagnostic result, error code and error flag, and you can even clear the error.
[5] Password setting (Set the password to protect FP series program reading and writing functions.)
Password registration and clearing is possible for the FP series password protection function.

FP monitoring function


Multiple GT displays can be connected to our FP series PLC.

GT link function
Up to 32 GT displays can be connected to one PLC unit without communication programs. The same screen operation is possible at a conveyor line or other remote locations, and the number of PLC units can be reduced, cutting the production process costs.

1) As the number of connected units increases, the response slows down. Check the speed in the actual line.
2) The response time becomes relatively longer than those in the case of one-to-one connection.
Please evalute whether an safficient performance can be obtained in designing the system.


Connectivity with multiple PLCs

Up to 31 PLC units can be connected to one GT unit. Progress in multiple production lines can be centrally monitored and controlled via one GT unit.

1) As the number of connected units increases, the response slows down. Check the speed in the actual line.
2) The response time becomes relatively longer than those in the case of one-to-one connection.
Please evalute whether an safficient performance can be obtained in designing the system.


Enhanced security with password protection

Password protection and operation security functions protect the data asset in the display unit and control the authorization for operation.
Password protection function
The screen data upload operation can be restricted by using passwords to protect the data asset in the display unit.Operation security function
Up to 64 operators can set individual passwords, and up to 16 levels of restrictions can be set on displays and operations for each part. The registered users and passwords can be changed on the display unit.


High-efficiency operation with through function

This function allows operators to simultaneously carry out the transfer of screen data of a GT series display and the debugging of our FP series PLC connected to the display.


Easy-to-switch language

Conventionally, screens were created for each language. With this new language switching function, data can be registered in multiple languages (up to 16) for each part. The characters can be easily edited with Microsoft Excel® and then imported.


Write device function

This function modifies the PLC data or turns bits on/off according to the PLC status or the screen No. Now four arithmetic operations between devices are also possible.


Item GT32M-E GT32T-E
RS232C RS422/RS485 RS232C RS422/RS485
Rated voltage 24 V DC
Operating voltage range 21.6 ~ 26.4 V DC
Power consumption 4.8W or less 7.2W or less
Power supply unit isolation method Transformer isolation
Ambient temperature -20 ~ +60 °C −4 to +140 ℉*5
Ambient humidity 10 to 90 %RH (at 25 °C 77 ℉), No condensation
Storage temperature -20 ~ +60 °C −4 to +140 ℉
Storage humidity 10 to 90 %RH (at 25 °C 77 ℉), No condensation
Vibration resistance 5 to 8.4 Hz, amplitude: 3.5 mm 0.14 in, 8.4 to 150 Hz, acceleration 9.8 m/s2, 10 sweeps each in X, Y and Z directions (1 octave / min.)
Shock resistance 147 m/s2, 3 times in each of the X, Y and Z directions
Superposed noise suppression 1,000 V [P-P] or more, pulse width of 50 ns, 1 μs between power supply terminals (by a noise simulator)
Environmental resistance IP67 (in the initial stages), Dust-proof and drip-proof from the front of the panel only (Rubber packing is attached to the panel contact surface.)*1
Mass 470 g approx.
Display Display device TFT monochrome LCD TFT color LCD
Resolution 320 (W) x 240 (H) dots
Display color 2 colors (black/white, 16-gray scale) 4096 colors
Displayable area 115.2 (W) × 86.4 (H) mm 4.54 (W) × 3.40 (H) in
Backlight White LED
Functions Font types Fixed (GTWIN) : 8 x 8, 16 x 8, and 16 x 16 dots, Characters can be displayed in the 1, 2, 4, or 8 times width or height,
True Type (GTWIN): 10 to 240 dots, Windows®: 10 to 240 dots
Languages Japanese, English, Simplified Chinese, Traditional Chinese, Korean, German, Italian, Spanish, French, and Turkish
Graphics Straight lines, Continuous straight lines, Squares, Circles, Ovals, Arcs, Elliptic arcs, Fan shapes, Elliptic fan shapes, Beveled squares, and Bitmaps
Number of screens*2 180 screens approx.
Screen setting No. Base screens: No. 0 to 3FF, Key board screens: No. 0 to 7, Login screens: No. 0 to F
Part functions Messages, Lamps, Switches, Function switches, Data, Bar graphs, Clocks, Keyboards, Line graphs, Alarm list, Alarm record, and Custom parts (messages, lamps, switche
Other functions Recipe, Flow display, Write device, Multiple PLC connection, FP monitor, Language switching,
GT link, Operation security, Data logging, and SD recipe*3
Clock function Provided with a built-in clock. (Can also refer to and display a PLC clock.) * Buy a commercially available battery.
Backlight brightness adjustment Can be set on the menu screen, via the GT configuration screen of GTWIN, or via PLC.
Contrast adjustment Contrast can be adjusted by using the touch panel.
Buzzer Installed
Automatic communication settings The communication speed (baud rate) is automatically changed if there is no response from the target equipment.
Through function GT connected between PC and PLC allows PLC to be debugged without a direct connection to a PC.
Screen creation Dedicated software should be used. Applicable OS: Windows® 2000 / XP / Vista / 7*6
Touch key resolution Free layout (8 dots min.)
Touch key operation force 0.8 N or less
Touch key life 1 million operations or more (at 25°C 77 ℉)
Communication standard Conforms to RS232C Conforms to RS422 / RS485 Conforms to RS232C Conforms to RS422 / RS485
Baud rate: 9,600 bps, 19,200 bps, 38,400 bps, 57,600 bps, and 115,200 bps
Data bits: 7 or 8 bits, Parity: None, Odd, Even, Stop bits: 1 bit
Protocol Our FP series supported, General-purpose serial interface supported, and Other companies’ PLC supported (Refer to the “PLC COMPATIBILITY TABLE” for manufacturers and models.)
Connector Connector terminal block (8 pins)
Screen data transfer interface Communication standard USB 1.1
Communication conditions with PC
Protocol Our dedicated protocol
Connector USB TYPE-B
Ethernet port*4
User’s memory Memory F-ROM
Capacity 12Mbyte
Memory backup Memory SRAM
Backup battery Lithium battery (replaceable) AFPX-BATT *Does not come with product

1 : This protective structure condition applies to the front surface of the installed panel. This condition does not guarantee usage in all environments provided by users. When reattaching the panel, replace the waterproof packing.
2 : The number of screens that can be registered varies according to the registered contents.
3 : The data logging and SD recipe functions are available with only models equipped with an SD/SDHC memory card slot.
4 : Simultaneous USB and Ethernet communications are not possible.
5 : When the unit is being installed in a horizontal orientation, the usable range is -20 to +55 °C -4 to +131 ℉.
6 : Not compatible with any 64-bit version of Windows.
