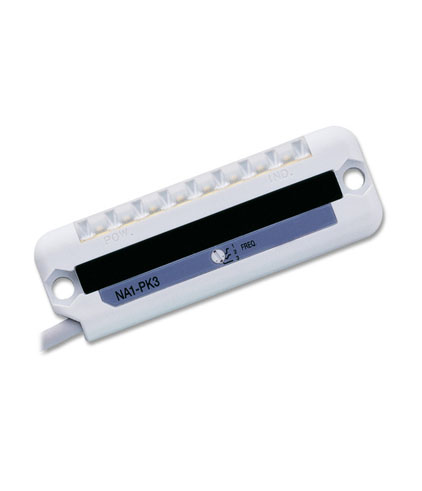

NA1-PK3 Photoelectric Sensor

Ultraslim body picking sensor

With an ultracompact size of 24mm × 70mm × 8mm (WxHxD), you can even install the NA1-PK3 series sensors in tiny parts boxes. The beam scanning system reduces wiring and installation time. The mutual interference prevention function guarantees correct operation even in multi-stage parts boxes.

Share this

Ultraslim body picking sensor

With an ultracompact size of 24mm × 70mm × 8mm (WxHxD), you can even install the NA1-PK3 series sensors in tiny parts boxes. The beam scanning system reduces wiring and installation time. The mutual interference prevention function guarantees correct operation even in multi-stage parts boxes.

Characteristics:

  • Space-saving, pocket lighter-sized unit
  • Utilizes a large, bright, clearly visible job indicator
  • No synchronization wires required
  • Switchable output operation
  • Easy alignment
  • Flexible cable orientation
  • Sensor protection brackets available

Options:

  • Sensor protection brackets
  • Slit mask
  • Mating cable (2m, 5m)
  • Y-shaped connector (5 pcs. per set)

Specifications

NPN output PNP output
  NA1-PK3 NA1-PK3-PN
Sensor type Picking sensor
Sensing height 49.2mm
Sensing range 30 to 300mm
Beam pitch 24.6mm
Number of beam channels 3 beam channels
Sensing object Ø29mm or more, opaque object
Supply voltage 12 to 24V DC ±10%
Current consumption Emitter: 30mA or less, Receiver: 50mA or less
Output NPN open-collector transistor, max.100mA PNP open-collector transistor, max.100mA
Response time 10ms or less
Pollution degree 3 (Industrial environment)
Protection IP62
Emitting element Infrared LED
Physical size (WxHxD) 24mm x 70mm x 8mm
Material Enclosure: Heat-resistant ABS, Lens cover: acrylic, Indicator cover: acrylic
Cable 0.2mm² 4-core (emitter: 3-core) cab tire cable, 2m long
Weight (approx.) Emitter: 50g Receiver: 50g



NA1-PK3 typical applications

Product Feature Product Feature
Cell production line Assembly line
