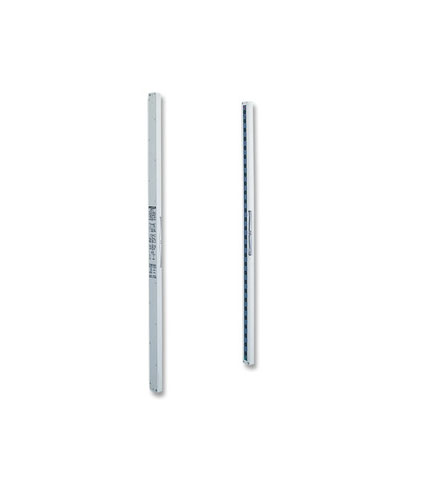

NA2-N Photoelectric PSensor

General purpose and slim body area sensor

The NA2-N series offers incredibly high performance in a general purpose area sensor. The slim body, just 13mm thick and 30mm wide, can be installed almost anywhere, greatly increasing planning efficiency. With a wide range of thin resin case type area sensors, from a sensing height of 540mm (28 beam channels) down to 140mm (8 beam channels), you can choose the size that best suits your purpose.

Download Here
Share this

General purpose and slim body area sensor

The NA2-N series offers incredibly high performance in a general purpose area sensor. The slim body, just 13mm thick and 30mm wide, can be installed almost anywhere, greatly increasing planning efficiency. With a wide range of thin resin case type area sensors, from a sensing height of 540mm (28 beam channels) down to 140mm (8 beam channels), you can choose the size that best suits your purpose. In order to meet global market standards, these sensors are CE marked, conform to the EMC Directive and are currently undergoing UL recognition certification. In addition to this, a PNP output type is also available. This general purpose & slim body area sensor is the answer to all of your on-site needs.
*The NA2-N series cannot be used as a safety sensor.

Characteristics:

  • Sensing height, 6 types available (140 to 540mm)
  • 8, 24 and 28 beam channel models in addition to the current models
  • Interference prevention for parallel installation
  • Selectable lighting pattern
  • High-speed response speed (10ms or less)
  • NPN and PNP type available
  • Slim body (13mm thick and 30mm wide)
  • Clearly visible wide job indicator

Accessories:

  • Sensor supporting brackets
  • Sensor mounting brackets
  • Slit masks
  • 4-core cable, 3m long

Specifications

NPN output NA2N8 NA2N12 NA2N16 NA2N20 NA2N24 NA2N28
PNP output NA2N8PN NA2N12PN NA2N16PN NA2N20PN NA2N24PN NA2N28PN
Sensing height 140mm 220mm 330mm 380mm 460mm 540mm
Sensing range 5m
Beam pitch 20mm
Min. sensing object Ø 30mm
Detection capability Opaque
Response time 10ms or less (12ms or less when the interference prevention function is used)
Output transistors NPN or PNP open collector max. 100mA
Emitting element Infrared LED (modulated)
Power consumption 0.7W or less 0.8W or less 0.9W or less 1.0W or less 1.1W or less 1.2W or less
Material Enclosure: aluminium, Lens cover: acrylic, Cap: polycarbonate and ABS
Protection IP40
Physical size (H x W x L) 190x30x13 mm 270x30x13 mm 350x30x13 mm 430x30x13 mm 510x30x13 mm 590x30x13 mm
Connection method Cable with connector
Operating voltage 12 to 24V DC±10% Ripple P-P 10% or less
Ambient temperature -10°C to +55°C
Weight (approx.) 350g 400g 450g 500g 570g 650g



NA2-N typical applications

Product Feature Product Feature Product Feature
Detecting falling objects whose path is uncertain Detecting a loop Preventing wrong parts picking
