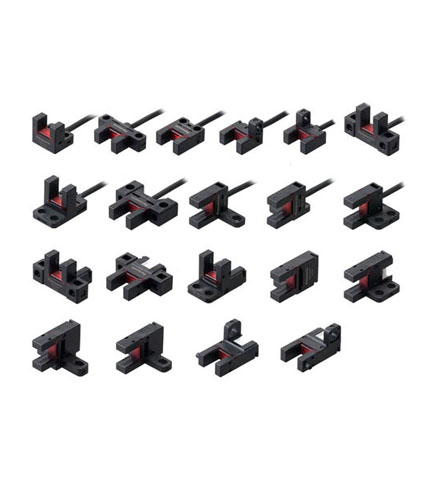

PM-25/45/65 Photoelectric Sensor

Beam emitting / receiving distance of 6mm!

The beam emitting and receiving sections are 0.5mm thinner compared to our conventional models although the external dimensions have not changed. As a result, the distance between the beam-emitting and the beam-receiving point increased by 1mm. The wider distance means less possibility of collision with the sensing objects.

Download Here
Share this

Beam emitting / receiving distance of 6mm!

The beam emitting and receiving sections are 0.5mm thinner compared to our conventional models although the external dimensions have not changed. As a result, the distance between the beam-emitting and the beam-receiving point increased by 1mm. The wider distance means less possibility of collision with the sensing objects.

Beam marks for easy adjustment

There are marks on the front and back of the sensor to indicate the upper and the lower limit of the beam axis. This makes it easy to adjust the position of the sensing object.

Large and easy-to-see operation indicator

The large operation indicator (orange) lights up when an object enters the beam axis. The indicator is easy to see from any angle – even from above and from the sides.

Resistant to vibrations and impacts

Sections where stress concentrates, for example the section where the cable and the internal circuit meet, are covered with a resin. This helps to prevent malfunctions caused by vibrations and impacts.

Easy mounting with M3 screws

The sensor unit can be installed with one (PM-F65, PM-R65) or two (all other models) M3 screws. M3 screws and washers are not included, see options.

Three protection circuits on all models

All models are standardly equipped with the following protection circuits in their compact bodies. These protection circuits minimize the possibility of sensor malfunctions or damage caused by incorrect wiring.

  1. Reverse supply polarity protection circuit
  2. Reverse output polarity protection circuit
  3. Output short-circuit protection circuit

Applications

Product Feature

Positioning of a pallet

Product Feature

Sensing the starting point and overrun of a moving body

Product Feature

Sensing the starting point on a rotating body

Ultra-small PM-25 series (with cable)

Type Fork width Model No. Cable length Output Output operation
K type 6mm (fixed) PM-K25 1m NPN open-collector transistor Incorporated with 2 outputs:
Light-ON / Dark-ON
PM-K25-R 1m, bending-resistant cable
PM-K25-C3 3m
PM-K25-P 1m PNP open-collector transistor
L type PM-L25 1m NPN open-collector transistor
PM-L25-R 1m, bending-resistant cable
PM-L25-C3 3m
PM-L25-P 1m PNP open-collector transistor
U type PM-U25 1m NPN open-collector transistor
PM-U25-R 1m, bending-resistant cable
PM-U25-C3 3m
PM-U25-P 1m PNP open-collector transistor
F type PM-F25 1m NPN open-collector transistor
PM-F25-R 1m, bending-resistant cable
PM-F25-C3 3m
PM-F25-P 1m PNP open-collector transistor
R type PM-R25 1m NPN open-collector transistor
PM-R25-R 1m, bending-resistant cable
PM-R25-C3 3m
PM-R25-P 1m PNP open-collector transistor

Note: The suffix “-R” in the model No. indicates a bending-resistant cable. The suffix “-C3” indicates that the cable length is 3m.

Compact PM-45 series (with cable)

Type Fork width Model No. Cable length Output Output operation
K type 6 mm (fixed) PM-K45 1m NPN open-collector Incorporated with 2 outputs:
Light-ON / Dark-ON
PM-K45-C3 3m
PM-K45-P 1m PNP open-collector transistor
PM-K45-P-C3 3m
T type PM-T45 1m NPN open-collector
PM-T45-C3 3m
PM-T45-P 1m PNP open-collector transistor
PM-T45-P-C3 3m
L type PM-L45 1m NPN open-collector
PM-L45-C3 3m
PM-L45-P 1m PNP open-collector transistor
PM-L45-P-C3 3m
Y type PM-Y45 1m NPN open-collector
PM-Y45-C3 3m
PM-Y45-P 1m PNP open-collector transistor
PM-Y45-P-C3 3m
F type PM-F45 1m NPN open-collector
PM-F45-C3 3m
PM-F45-P 1m PNP open-collector transistor
PM-F45-P-C3 3m
R type PM-R45 1m NPN open-collector
PM-R45-C3 3m
PM-R45-P 1m PNP open-collector transistor
PM-R45-P-C3 3m

Note: The suffix “-C3” indicates that the cable length is 3m.

Compact PM-65 series (with built-in connector)

Type Fork width Model No. Output Output operation
K type 6mm (fixed) PM-K65 NPN open collector transistor 2 outputs: Light-ON / Dark-ON
PM-K65-P PNP open collector transistor
T type PM-T65 NPN open collector transistor
PM-T65-P PNP open collector transistor
PM-T65W NPN open collector transistor
PM-T65W-P PNP open collector transistor
L type PM-L65 NPN open collector transistor
PM-L65-P PNP open collector transistor
Y type PM-Y65 NPN open collector transistor
PM-Y65-P PNP open collector transistor
F type PM-F65 NPN open collector transistor
PM-F65-P PNP open collector transistor
PM-F65W NPN open collector transistor
PM-F65W-P PNP open collector transistor
R type PM-R65 NPN open collector transistor
PM-R65-P PNP open collector transistor
PM-R65W NPN open collector transistor
PM-R65W-P PNP open collector transistor

PM-25

Type Model No. Description
Mounting screw MS-M2 Mounting screw (2mm) with attached spring washers (50 pcs. per lot).

PM-65

Type Model No. Description
Cable with connector attached CN-14A-C1 Length: 1m 0.2mm2 4-core cab tire cable with connector on one end.
Cable outer diameter: ø3.7mm
CN-14A-C2 Length: 2m
CN-14A-C3 Length: 3m
CN-14A-C5 Length: 5m
Cable with connector attached CN-14A-R-C1 Length: 1m
CN-14A-R-C2 Length: 2m
CN-14A-R-C3 Length: 3m
CN-14A-R-C5 Length: 5m
Connector CN-14A Set of 10 housings and 40 contacts

Ultra-small / Cable type

Type Ultra-small / Cable type
  Bending-resistant cable 3m cable
NPN output PM-□25 PM-□25-R PM-□25-C3
PNP output PM-□25-P – –
Fork width 6mm (fixed)
Minimum sensing object 0.8 x 1.2mm opaque object
Hysteresis Max. 0.05mm
Repeatability Max. 0.01mm
Supply voltage 5 to 24V DC ±10% including ripple max. 10% (P-P)
Current consumption Max. 15mA
Output NPN output: open-collector transistor

  • Maximum sink current: 50mA
  • Applied voltage: max. 30V DC (between output and 0V)
  • Residual voltage: max. 2V (at 50mA sink current), max. 1V (at 16mA sink current)

PNP output: PNP open-collector transistor

  • Maximum source current: 50mA
  • Applied voltage: max. 30V DC (between output and + V)
  • Residual voltage: max. 2V (at 50mA source current), max. 1V (at 16mA source current)
Output operation 2 outputs: Light-ON / Dark-ON
Short-circuit protection Built in
Response time Under light received condition: max. 20μs
Under light interrupted condition: max. 80μs
Maximum response frequency: 3kHz (note 2)
Operation indicator Orange LED (lights up when light is received)
Pollution degree 3
Degree of protection IP64 (IEC)
Ambient temperature (note 3, 4) Operation: -25 to +55°C (No dew condensation or icing allowed)
Storage: -30 to +80°C
Ambient humidity Operation: 5 to 85% RH
Storage: 5 to 95% RH
Ambient light Fluorescent light: 1,000 ℓx at the light-receiving face
Voltage withstandability 1,000V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance Min. 20MΩ with 250V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 2,000Hz frequency, 1.5mm double amplitude (maximum acceleration 196m/s2) in X, Y and Z directions for two hours each
Shock resistance 15,000m/s2 acceleration (approx. 1,500G) in X, Y and Z directions three times each
Emitting element Infrared LED (peak emission wavelength: 855nm, non-modulated)
Material Enclosure: PBT, display: polycarbonate
Cable 0.09mm2 4-core cab tire cable, 1m long 0.1mm2 4-core bending-resistant cab tire cable, 1m long (note 5, 6) 0.09mm2 4-core cab tire cable, 3m long
Cable extension Extension up to total 100m is possible by using a cable with a diameter of min. 0.3mm2 (note 7).
Weight Net weight: approx. 10g
Gross weight: approx.15g		 Net weight: approx. 30g
Gross weight: approx. 35g

Notes:

  1. Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23°C.
  2. The response frequency is the value when the disc shown in the figure (see data sheet), is rotated.
    PM-25/45/65 notes
  3. In case the PM-25 series is used at an ambient temperature of more than +50°C, mount it on a metal body.
  4. Note that the cable of PM-□25-R loses its flexibility when the ambient temperature decreases to about -10°C.
  5. The cable of PM-□25-R is a bending-resistant cable which can be used on a moving base. When the sensor is mounted on a moving base, secure the sensor cable joint at the unit in place so that no stress is applied to the cable.
  6. When storing the PM-□25-R, make sure that the cable does not come into contact with the sensing section or operation indicator.
  7. If the cable is extended to a length of 20m or longer, make sure that the supply voltage at the end of the cable attached to the sensor is at least 4.5V.

Compact / Cable type

Type Compact / Cable type
  3m cable
NPN output PM-□45 PM-□45-C3
PNP output PM-□45-P PM-□45-P-C3
Fork width 6mm (fixed)
Minimum sensing object 0.8 x 1.2mm opaque object
Hysteresis Max. 0.05mm
Repeatability Max. 0.01mm
Supply voltage 5 to 24V DC ±10% including ripple max. 10% (P-P)
Current consumption Max. 15mA
Output NPN output: open-collector transistor

  • Maximum sink current: 50mA
  • Applied voltage: max. 30V DC (between output and 0V)
  • Residual voltage: max. 2V (at 50mA sink current), max. 1V (at 16mA sink current)

PNP output: PNP open-collector transistor

  • Maximum source current: 50mA
  • Applied voltage: max. 30V DC (between output and + V)
  • Residual voltage: max. 2V (at 50mA source current), max. 1V (at 16mA source current)
Output operation 2 outputs: Light-ON / Dark-ON
Short-circuit protection Built in
Response time Under light received condition: max. 20μs
Under light interrupted condition: max. 80μs
Maximum response frequency: 3kHz (note 2)
Operation indicator Orange LED (lights up when light is received)
Pollution degree 3
Degree of protection IP64 (IEC)
Ambient temperature Operation: -25 to +55°C (No dew condensation or icing allowed)
Storage: -30 to +80°C
Ambient humidity Operation: 5 to 85% RH
Storage: 5 to 95% RH
Ambient light Fluorescent light: 1,000 ℓx at the light-receiving face
Voltage withstandability 1,000V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 20MΩ, or more, with 250V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 2,000Hz frequency, 1.5mm double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each
Shock resistance 15,000 m/s2 acceleration (approx. 1,500 G) in X, Y and Z directions three times each
Emitting element Infrared LED (peak emission wavelength: 855nm, non-modulated)
Material Enclosure: PBT, display: polycarbonate
Cable 0.09mm2 4-core cab tire cable, 1m long 0.09mm2 4-core cab tire cable, 3m long
Cable extension Extension up to total 100m is possible by using a cable with a diameter of min. 0.3mm2 (note 3).
Weight Net weight: approx. 10g
Gross weight: approx. 15g		 Net weight: approx. 30g
Gross weight: approx. 35g

Notes:

  1. Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23°C.
  2. The response frequency is the value when the disc shown in the figure (see data sheet), is rotated.
    PM-25/45/65 note
  3. If the cable is extended to a length of 20m or longer, make sure that the supply voltage at the end of the cable attached to the sensor is at least 4.5V.

Compact / Connector built-in type

Type Compact / Connector built-in type
  Mounting-compatible with conventional model (note 2)
NPN output PM-□65 PM-□65W
PNP output PM-□65-P PM-□65W-P
Fork width 6mm (fixed)
Minimum sensing object 0.8 x 1.2mm opaque object
Hysteresis Max. 0.05mm
Repeatability Max. 0.01mm
Supply voltage 5 to 24V DC ±10% including ripple max. 10% (P-P)
Current consumption Max. 15mA
Output NPN output: open-collector transistor

  • Maximum sink current: 50mA
  • Applied voltage: max. 30V DC (between output and 0V)
  • Residual voltage: max. 2V (at 50mA sink current), max. 1V (at 16mA sink current)

PNP output: PNP open-collector transistor

  • Maximum source current: 50mA
  • Applied voltage: max. 30V DC (between output and + V)
  • Residual voltage: max. 2V (at 50mA source current), max. 1V (at 16mA source current)
Output operation 2 outputs: Light-ON / Dark-ON
Short-circuit protection Built in
Response time Under light received condition: max. 20μs
Under light interrupted condition: max. 80μs
Maximum response frequency: 3kHz (note 3)
Operation indicator Orange LED (lights up when light is received)
Pollution degree 3
Degree of protection IP40 (IEC)
Ambient temperature Operation: -25 to +55°C (No dew condensation or icing allowed)
Storage: -30 to +80°C
Ambient humidity Operation: 5 to 85% RH
Storage: 5 to 95% RH
Ambient light Fluorescent light: 1,000 ℓx at the light-receiving face
Voltage withstandability 1,000V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 20MΩ, or more, with 250V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 2,000Hz frequency, 1.5mm double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each
Shock resistance 15,000 m/s2 acceleration (approx. 1,500 G) in X, Y and Z directions three times each
Emitting element Infrared LED (peak emission wavelength: 855nm, non-modulated)
Material Enclosure: PBT, display: polycarbonate
Cable length Extension up to total 100m is possible by using a cable with a diameter of min. 0.3mm2 (note 4).
Weight Gross and net weight: approx. 3g

Notes:

  1. Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23°C.
  2. Mounting-compatible with our conventional models [PM-T53(B) / PM-□64(P)]
  3. The response frequency is the value when the disc shown in the figure (see data sheet), is rotated.
    PM-25/45/65 note
  4. If the cable is extended to a length of 20m or longer, make sure that the supply voltage at the end of the cable attached to the sensor is at least 4.5V.

Related Products

  •

    EX-10S Photoelectric Sensor

    Ultra miniature photoelectric sensors with narrow beam

    Like the EX-10 series, with the dimensions of only 14.5 x 3.5 x 10mm, the EX-10S series sensors are among the smallest and narrowest sensors worldwide. This S version with a thinner beam allows the detection of small objects within a very narrow detection zone. Characteristics:
    • An installation closely attached to each other is possible due to thin beam
    • Detects objects with a diameter of just 0.5mm
    • Long-range sensing of up to 1m
    • Small housing - 14.5 x 3.5 x 10mm
    [vc_btn title="Download Here" style="flat" shape="square" color="warning" size="lg" i_icon_fontawesome="fa fa-caret-square-o-down" add_icon="true" link="url:#"]
    Read More
  •

    EX-30 Photoelectric Sensor

    Threaded miniature photoelectric sensors

    With an M4 thru-beam type and an M6 reflective type sensor, the user has a series of miniature photoelectric sensors at his disposal. In addition to being quick and easy to install, the EX-30 series sensors' integrated signal amplifier, stable mechanical properties, and robust, zinc housing make it an attractive alternative to photoelectric sensors with fiber cables. Characteristics:
    • Threaded design (M4 thru-beam type and M6 reflective type)
    • Response time only 0.5ms
    • New: up to 35% less power consumption
    • New: improved ambient light immunity
    • Red LED
    • Sensitivity can be adjusted (EX-32, EX-33)
    • 2-color LED indicator
    • IP67 degree of protection
    • Light ON/dark ON modes (EX-33)
    [vc_btn title="Download Here" style="flat" shape="square" color="warning" size="lg" i_icon_fontawesome="fa fa-caret-square-o-down" add_icon="true" link="url:#"]
    Read More
  •

    PM2 Photoelectric Sensor

    Convergent reflective microphotoelectric sensors

    The PM2 series is suitable for a large number of applications due to its compact and robust design. The application range is extended using the "U" shaped version. Due to the fixed focusing of the light beam, PM2 sensors enable precise object detection in a defined sensing range. The PM2 series measures independently of the background, detects dark or slightly reflective objects and extremely thin objects (> 0.05mm). Characteristics:
    • Response time typically 20µs
    • Detection independent of background
    • Connector termination
    [vc_btn title="Download Here" style="flat" shape="square" color="warning" size="lg" i_icon_fontawesome="fa fa-caret-square-o-down" add_icon="true" link="url:#"]
    Read More
  •

    EX-20 Photoelectric Sensor

    Ultracompact photoelectric sensors (side sensing)

    Using a single chip optical IC we created the powerful EX20 sensors, which are among the smallest photoelectric sensors worldwide. In spite of their miniature size, the sensors incorporate a sensitivity adjuster. Since a red LED dot light source is used, alignment and confirmation of the sensing position is easy, even if very tiny objects have to be detected. Characteristics:
    • Miniature construction
    • Response time only 0.5ms
    • Red LED
    • New: up to 35% less power consumption
    • New: improved ambient light immunity
    • Adjustable sensitivity
    • Thru-beam
    • Diffuse reflective
    • Sealed to IP67
    • 2 indicator LEDs
    [vc_btn title="Download Here" style="flat" shape="square" color="warning" size="lg" i_icon_fontawesome="fa fa-caret-square-o-down" add_icon="true" link="url:#"]
    Read More
