Pulse AC Method Area Ionizer ER-X

High-Speed, Wide Area Charge Removal

Share this

Three features for diverse application coverage

The ER-X series offers an airless charge removal capability to eliminate the need for compressed air in addition to low pressure and high speed compressed air based modes.
Furthermore, it supports dual-head confi gurations for expanded application coverage.





Fast Charge Removal

Massive ion discharge when using air reduces charge removal time.

By applying a compressed air source, the ion volume increases providing an improved tact time for substrate ionization. This makes the ER-X suitable for applications such as electronic paper and thin film solar cells, where charge removal time is directly linked to productivity.





Airless or Low-Pressure

Resolves target movement issues in the presence of compressed air.

The ER-X series works extremely well for charge removal applications.
Precision substrates like laminated film and lead frames, as an example, may become unseated or shifted due to the presence of a compressed air source. The absence of compressed air during ionization facilitates smooth operation while efficiently removing surface charges.





Low-Pressure (Air pressure:Less than 0.05MPa)

Prevents dust dispersion and cleanliness degradation!

The ER-X series can effectively remove surface charges with an air pressure of less than 0.05 MPa.
With the advantage of minimal dust dispersion, it is suitable for charge removal in semiconductor, FPD (mobile panel), and other applications that require high degree of cleanliness. The presence of air also helps prevent adhesion of dust to the discharge needles, requiring less cleaning than in the airless charge removal mode.

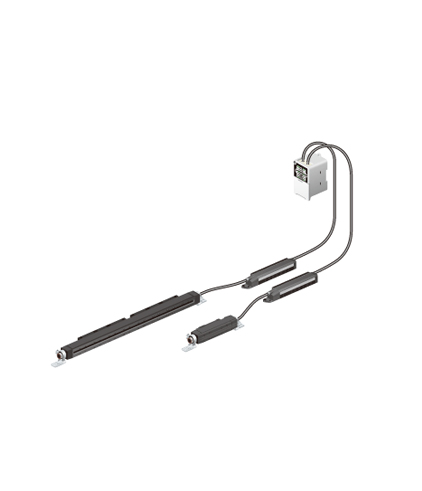

Dual Head Configuration for Enhanced Charge Area and Layout Expansion

• Different heads can be combined.
• Charge removal is possible with a layout that places heads on either side of the workpiece.
• The charge removal efficiency can be increased by synchronizing the two heads.

Dual Head Configuration for Enhanced Charge Area and Layout Expansion

Effective charge
removal width
Model No.
50 mm 1.969 in approx. ER-X001
80 mm 3.150 in approx. ER-X008
160 mm 6.299 in approx. ER-X016
320 mm 12.598 in approx. ER-X032
480 mm 18.898 in approx. ER-X048
640mm 25.197 in approx. ER-X064



0.3 sec. or less* fastest charge removal achieved with pulse AC method spot type ionizer.
[ER-X001]

The pulse AC method enables the ER-X001 to generate and discharge a large amount of ions, which makes charge removal faster. Furthermore, as a spot type ionizer, it achieves the fastest charge removal of 0.3 sec. or less* (±1,000 V → ±100 V).
*Based on research conducted by our company as of October 2014.



  • Supports airless and low-pressure charge removal, which means charge removal is possible without blowing away tiny work pieces.
  • Free head placement is possible thanks to flexible cable with internal air tube.
  • Air supply port angle can be adjusted.
    ■ER-X001 high-voltage unit
    ER-X001 high-voltage unit





Compact heads with a 360-degree angle adjustment mechanism

The ER-X series heads are compact in size (30 × 22 mm 1.181 × 0.866 in) and installable even in a narrow space. The heads can be rotated 360 degrees to enable charge removal area adjustment after installation.





Flat discharge surface for easy cleaning

The ER-X series heads have a flat discharge face, allowing effortless cleaning of the discharge needles and air outlets by simply brushing along the groove provided.



Discharge needle unit for simple needle replacement

The removable discharge needle unit (including a set of four needles) substantially simplifies maintenance. To remove the unit, just slide it toward both ends as indicated by the arrows.





Carefully designed to prevent contamination in manufacturing processes

In consideration of the manufacturing process (secondary cells etc.), the ER-X series heads neither use copper nor plate processing. This minimizes the risk of contamination with foreign substances.



Pulse AC method for faster charge removal*

The ER-X series has adopted the pulse AC method that alternately applies positive and negative voltages to each discharge needle. This enables generation and discharge of a large amount of ions, resulting in faster charge removal. In addition, the method offers variable discharge frequency/ion balance (between the positive (+) and negative (-) widths) and is useful for charge removal on different types of workpieces.

* Compared with conventional Panasonic models



Level meter for visual monitoring of the charge removal status

The ER-X series has two built-in monitoring modes. Ion Monitor mode detects and displays the amount of positive and negative ions being generated. The level meter can be used to visually identify degradation of ion production due to factors such as dust accumulation on the discharge needles. The Charge Monitor mode lets you quickly determine if the area around the head carries a positive or negative charge. These modes can be selected by using the display selector switch to determine how you would like to utilize the level meter.





Automatic ion balance control

The ER-X series provides an automatic ion balance control mechanism that senses the amount of ions being generated (which changes according to environmental factors) and compensate for this deviation in the controller, thus maintaining a highly stable ion balance as an original operator setting.



Specifications

Heads

Spot type

Type Spot type
Model No. ER-X001
Effective charge removal width 50mm 1.969 in approx.
Charge removal time
(±1,000V→±100V)
0.3 sec. or less (Note 1), 0.5 sec. or less (Note 2)
Ion balance ±30 V or less (Note 2, 3)
Discharge method Pulse AC method (Note 4)
Discharge output voltage ±7,000 V approx.
Ozone generation 0.01 ppm or less (Note 2)
Maximum air pressure 0.5MPa
Applicable fluid Air (dried clean air) (Note 5)
Ambient temperature 0 to +40℃+32 to +104 ℉ (No dew condensation),
Storage: -10 to +65℃ +14 to +149℉
Ambient humidity 35 to 65 % RH, Storage: 35 to 85 % RH
Vibration resistance 10 to 55 Hz frequency, 0.75 mm 0.030 in amplitude in X, Y and Z directions for two hours each
Shock resistance 100 m/s2 acceleration (10 G approx.), in X, Y and Z directions for three times each
Enclosure grounding method Floating
Material Main unit enclosure: Stainless steal (SUS), Head mounting bracket: Stainless steal (SUS), Discharge needle: PFA, Tungsten
High-voltage cable length 1.2 m 3.937 ft
Weight Net weight: 370 g approx.
Accessory Head mounting bracket (installed at the time of factory shipment)

Notes:
1) Typical value in condition of discharge distance 50 mm 1.969 in, center of the product, discharge wavelength 50 Hz and air supply 60 ℓ/min.(0.3 MPa).
2) Typical value in condition of discharge distance 50 mm 1.969 in, center of the product, discharge wavelength 50 Hz and no air supply.
3) Ion balance refers to the average value of plus and minus. The specification value is the typical one in condition used when ambient temperature change is less than ±10℃, ion
balance is set after 30 minutes from the discharge start, the ion balance control function is set ON.
4) For ER-X001 the discharge frequencies of 50 Hz, 20 Hz are accepted.
5) The dried clean air is the air dried (dew point: equivalent of -20℃ -4℉) and filtered (mesh-size: equivalent of 0.01 μm).



Bar type

Type Bar type
Model No. ER-X008 ER-X016 ER-X032 ER-X048 ER-X064
Effective charge
removal width
80 mm
3.150 in
approx.
160 mm
6.299 in
approx.
320 mm
12.598 in
approx.
480 mm
18.898 in
approx.
640 mm
25.197 in
approx.
Charge removal time 1 second or less (Note 1)
Ion balance ±30 V or less (Note 1, 2)
Discharge method Pulse AC method
Discharge output voltage ±7,000 V approx.
Ozone generation 0.01 ppm or less
Maximum air pressure 0.5 MPa
Applicable fluid Air (dried clean air) (Note 3)
Ambient temperature 0 to +50 ℃ +32 to +122 ℉ (No dew condensation),
Storage: -10 to +65 ℃ +14 to +149 ℉
Ambient humidity 35 to 65 % RH, Storage: 35 to 85 % RH
Vibration resistance 10 to 55 Hz frequency, 0.75 mm 0.030 in amplitude in X, Y and Z directions for two hours each
Shock resistance 100 m/s2 acceleration (10 G approx.), in X, Y and Z directions for three times each
Enclosure grounding method Floating
Material Main unit enclosure: PPS, Stainless steal (SUS)
Head mounting bracket: Stainless steal (SUS), Discharge needle: Tungsten
High-voltage cable length 0.5 m 1.640 ft
Net weight 330 g approx. 410 g approx. 530 g approx. 650 g approx. 780 g approx.

Notes:
1) In condition of discharge distance 100 mm 3.937 in, center of the product, discharge wavelength 50 Hz and no air supply.
2) Ion balance is average of plus and minus. Also, the specification value is typical value in condition of less than ±10℃ ambient temperature change, set the ion balance after 30 minutes of the discharge starting, switching on the ion balance control function.
3) The dried clean air is dried (dew point: equivalent of -20℃) and filtered (mesh-size: equivalent of 0.01 μm) air.



Controller

Type Controller
Model No. ER-XC02
Number of heads connected Maximum 2 units
Supply voltage 24 V DC ±10 %
Current consumption 450 mA or less when connecting 1 heads, 800 mA or less when connecting 2 heads
Indictor Displays status of Head 1 and 2
  DSC (Discharge) Green LED (lights up when discharging)
CHECK Orange LED (lights up when dirt, wear, etc. of the discharge needle is detected)
ERROR Red LED (lights up when abnormal discharge is detected)
Level meter Green LED (5 levels, lights up depending on amount of the charge or ion generation)
Output
[ALARM
ERROR
COM (Common)]
PhotoMOS relay output
• Maximum load current: 100 mA
• Applied voltage: 30 V DC or less (between output-output common)
• Residual voltage: 1.5 V or less (at load current of 100 mA)
  Output operation ALARM:
ON when dirt or wear of the discharge needle is detected;
OFF when operation is normal.
ERROR:
OFF when abnormal discharge is detected;
ON when operation is normal.
Short-circuit protection Incorporated (automatic reset type)
Discharge control input
(DSC OFF)
Discharge allowed: Open,
Discharge halt: 24 V or 0 V shorted
Ambient temperature 0 to +50 ℃ +32 to +122 ℉ (No dew condensation),
Storage: -10 to +65 ℃ +14 to +149 ℉
Ambient humidity 35 to 65 % RH, Storage: 35 to 85 % RH
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 20 MΩ, or more, with 250 V megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude in X, Y and Z directions for two hours each
Shock resistance 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions for three times each
Enclosure grounding method Floating
Material Enclosure: ABS
Weight 130 g approx.
Accessories Power supply / I/O connector: 1 set (Housing 5557-10R, Terminal 5556TL [manufactured by Molex Inc.])
Ground wire (3.7 m 12.139 ft approx.): 1 pc.
