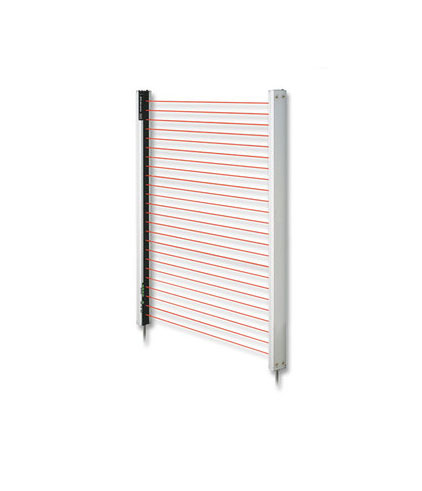

SF2C Safety Light Curtain

Ultra-slim safety light curtain with LED indicators, Type 2

The compact safety light curtains with a thickness of only 13.2mm come in an ultra light polycarbonate enclosure. They are available as a hand protection type with a beam pitch of 20mm, allowing you to detect objects as small as 25mm in diameter. The light curtains are delivered with a 3-meter cable and mounting brackets (MS-SFC-1).

Download Here
Share this

Ultra-slim safety light curtain with LED indicators, Type 2

The compact safety light curtains with a thickness of only 13.2mm come in an ultra light polycarbonate enclosure. They are available as a hand protection type with a beam pitch of 20mm, allowing you to detect objects as small as 25mm in diameter. The light curtains are delivered with a 3-meter cable and mounting brackets (MS-SFC-1).

Characteristics:

  • Easy beam axis alignment due to large aperture angle
  • Less mounting effort due to reduced wiring
  • Slim size for compact applications
  • Very lightweight due to polycarbonate  enclosure
  • Optimum small width of only 13.2mm
  • Interference prevention output
  • IP67 protection

Table SF2C

SF2C-H
Sensor type Safety light curtain
Safety category EN 61496-1 (Type 2), EN ISO 13849-1 (Category 2, PLe), EN 61508-1 to 7 (SIL 1), EN 55011, EN 50178, EN 61000-6-2
Protective height See table below
Operating range 0.1 to 3m
Beam pitch 20mm
Min. sensing object Ø 25mm in opaque object
Detection capability Opaque
Response time OFF response: max. 20ms, ON response: 80 to 100 ms
Output transistors OSSD (max. 200mA; leakage current: max. 200μA)
Emitting element Infrared LED (850nm)
Current consumption Emitter: max. 50mA, receiver: max. 45mA (depends on type)
Material Enclosure: Polycarbonate alloy, sensing surface: Polycarbonate alloy
Degree of protection IP67
Physical size (HxWxL) H x 13.2 x 30mm (H see table below)
Connection method Cable 3m
Operating voltage 24V DC (±20%)
Ambient temperature -10°C to +55°C
Weight See table below



Model No. No. of beams Protective height Weight
PNP output type NPN output type Channels (mm) (g)
SF2C-H8-P SF2C-H8-N 8 160 280
SF2C-H12-P SF2C-H12-N 12 240 340
SF2C-H16-P SF2C-H16-N 16 320 400
SF2C-H20-P SF2C-H20-N 20 400 460
SF2C-H24-P SF2C-H24-N 24 480 520
SF2C-H28-P SF2C-H28-N 28 560 580
SF2C-H32-P SF2C-H32-N 32 640 640



Options

Metal protection case
Applicable beam channels (2 pcs. per set for emitter and receiver)
SF2C-H_ Model No.
8 MS-SFCH-8
12 MS-SFCH-12
16 MS-SFCH-16
20 MS-SFCH-20
24 MS-SFCH-24
28 MS-SFCH-28
32 MS-SFCH-32



Control unit
Designation Model No. Description
Slim control unit SF-C13 Connection to the light curtain with a discrete wire. Relay output available. Compatible with up to control category 4 (control category 2 when used together with the SF2C series).
