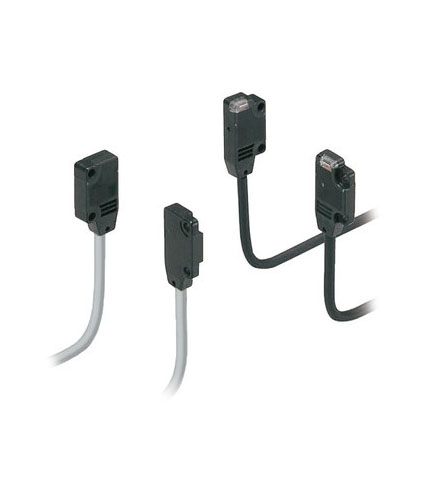

EX-10S Photoelectric Sensor

Ultra miniature photoelectric sensors with narrow beam

Like the EX-10 series, with the dimensions of only 14.5 x 3.5 x 10mm, the EX-10S series sensors are among the smallest and narrowest sensors worldwide. This S version with a thinner beam allows the detection of small objects within a very narrow detection zone.

Characteristics:

  • An installation closely attached to each other is possible due to thin beam
  • Detects objects with a diameter of just 0.5mm
  • Long-range sensing of up to 1m
  • Small housing – 14.5 x 3.5 x 10mm
Download Here
Share this

Ultra miniature photoelectric sensors with narrow beam

Like the EX-10 series, with the dimensions of only 14.5 x 3.5 x 10mm, the EX-10S series sensors are among the smallest and narrowest sensors worldwide. This S version with a thinner beam allows the detection of small objects within a very narrow detection zone.

Characteristics:

  • An installation closely attached to each other is possible due to thin beam
  • Detects objects with a diameter of just 0.5mm
  • Long-range sensing of up to 1m
  • Small housing – 14.5 x 3.5 x 10mm

Specifications EX-10S

Type Thru-beam
Front sensing Side sensing Front sensing Side sensing Front sensing
Model no. Light-ON EX-11SA(-PN) EX-11SEA(-PN) EX-13SA(-PN) EX-13SEA(-PN) EX-19SA(-PN)
  Dark-ON EX-11SB(-PN) EX-11SEB(-PN) EX-13SB(-PN) EX-13SEB(-PN) EX-19SB
Sensing range 150mm 500mm 1m
Min. sensing object ø0.5mm ø1.0mm ø2.0mm
opaque objects
Response time 0.5ms or less
Output PNP/NPN open-collector transistor, maximum source current: 50 mA
Emittting element Red LED (Peak emission wavelength: 680nm, modulated)
Current consumption Emitter: 10mA or less, Receiver: 10mA or less
Housing material Enclosure: Polyethylene terephthalate
Protection IP67
Physical size (HxWxL) 14.5 x 3.5 x 10mm 14.5 x 4.5 x 10mm 14.5 x 3.5 x 10mm 14.5 x 4.5 x 10mm 14.5 x 3.5 x 10mm
Connection method Cable, 2m
Operating voltage 12 to 24V DC ± 10 % ripple P-P 10 % or less
Ambient temperature -25 to +55℃ (no dew condensation or icing allowed)
Weight 20 g approx. net weight (each emitter/receiver)
