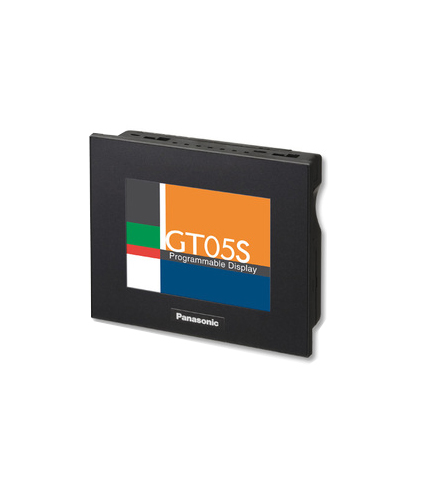

Ultra-compact body equipped with a 3.5 inch QVGA display.

UL/C-UL , CE Approved
CE : EMC Directive
UL : Approved Listing

Share this

3.5 inch TFT high-contrast monochrome QVGA LCD with a wide vewing angle provides higher visibility [GT05M/GT05G]

*The display has been changed STN LCD to TFT LCD from production in March 2016.


Bright LED backlight adopted [GT05M / GT05G]

GT05M displays screens in white, red, and pink, and GT05G in green, orange, and red, ensuring both operability and visibility.

3.5 inch TFT 4,096 colors QVGA LCD with a wide viewing angle [GT05S]

*The display has been changed STN LCD to TFT LCD from production in December 2011.

Bright LED backlight adopted [GT05S]



SD / SDHC memory card slot as standard equipment*1

Easy to copy, back up, and restore screen data.
*1: Class 10 compatible with a card of up to 32 GB.

USB interface as standard equipment

Supports the through function using a USB cable, allowing simultaneous debugging of PLC and GT.

Characters of a 240 dots maximum size can be displayed.

Capable of displaying several fine 10-dot characters or one 240 dots character in full screen.

Transformer-isolated power supply

The isolated power supply enhances the reliability.

GT32-R-pic05・The panel face protection sheet for the GT series is available as an option.

SD Solutions only Panasonic can provide

Links and expansion via SD
As small-size touch panels have significantly improved their image quality, easy to read displays with sharp characters are no longer special features these days. Instead, programmable displays will evolve with maximum “user-friendliness” in various applications with PCs or other devices.
As shown below, our touch panels exchange and store data using SD memory card, data for many applications..


PLC program transfer without the use of a PC

It is possible to modify PLC ladder programs as well as the GT screen programs by using an SD / SDHC memory card.
SD / SDHC memory card enables everyone to easily modify programs.
* Our FP series, excluding FP7.


SD card data transfer function

Log and other data saved on a SD memory card inserted into the GT’s onboard SD memory card slot can now be sent to a PC using a USB connection.

Installation on the PC of GT_SD_Reader software is required. This software is installed simultaneously with Terminal GTWIN (Ver. 2.E1 and higher).
The GT unit firmware must be a version that supports this function. If you are using a version that does not support this function, please upgrade by downloading it from our website.


SD logging function to produce data “Visualization”

Capable of automatically collecting electrical power readings of Eco-POWER METERS and displaying them in a real time graph, allowing users to take quick actions for solutions.
– The GT unit can collect data, such as electrical power on an SD / SDHC memory card, and display the log data in a real time graph.
You can make data “Visualization” without using a PC as a display or Data logger for collecting data.
– One bar graph has a maximum of eight bars and can be combined with line graphs.
– The following three conditions can be selected to trigger an operation to save log data.
(1) Specified time (2) Specified cycle (1 sec. to 24 hrs.) (3) Specified condition
– Large volumes of data can be saved on an SD / SDHC memory card, which can be carried with you.

SD recipe function

For high-mix production, recipe data up to 64 types and 4,096 devices in total, can be easily set on a PC. The created recipe data is saved on an SD / SDHC memory card, and the specified data can be written or read from a PLC.


Saving alarm history data on an SD / SDHC memory card

The alarm history data stored in the GT built-in memory can be saved on an SD / SDHC memory card, making it possible to easily control problems on a PC.


Highly flexible screen design!

GT series displays use an analog-touch panel where locations of parts and characters can be adjusted in increments of one dot. The adoption of the Windows® font has widened the character size selection (10 to 240 dots), making the screen design more flexible.
*The maximum size varies depending on the model.。

“Analog-touch design”


“TrueType fonts”

The adoption of the Windows®font has made it possible to choose a font focusing on the screen image and visual quality.


Graph function

One bar graph has a maximum of eight bars and can be combined with line graphs.

Portrait display ideal for narrow spaces

The unit can display screens in portrait orientation and can therefore be installed in narrow spaces, expanding system design possibilities and contributing to size reduction.
The portrait display is also ideal for slim equipment without enough space to install a display.


Flow display function

A flowing message of up to 64 characters (two-byte) can be displayed at the bottom of the screen. (128 messages)


Multi-function switches

Multiple operations are possible. For example, screens can be switched by setting multiple values.


FP monitoring function [FP2SH / FP0R / FP-Σ / FP-X / FP-X0 / FP-e / FP0 / FP2]

*Excluding FP7
Five convenient features of GT series for improved compatibility with our FP series of PLCs

[1] Device monitor (Display and change values of FP series devices. Three different modes available.)
(1)Easy Monitor:Use this mode when you want to monitor something. Display is continuous when one device is specified and the device can be changed.
(2)Entry Monitor:Use this mode when you want to monitor multiple devices. You can register devices you want to display one-by-one and you can change them.
(3)Forced On/Off:Use this mode feature to forcibly turn output on and off. You can set devices one-by-one for which you want to control output.
[2] System register monitor (Display and change of system register values.)
You can specify the system register number, display the value, and change it.
[3] Shared memory monitor (Display shared memory values.)
You can specify the slot number, bank number and address, and display the value. You cannot change the value.
[4] Error monitor (Display an error occurring in the FP series PLC.)
You can display the self-diagnostic result, error code and error flag, and you can even clear the error.
[5] Password setting (Set the password to protect FP series program reading and writing functions.)
Password registration and clearing is possible for the FP series password protection function.

FP monitoring function

Multiple GT displays can be connected to our FP series PLC.

GT link function
Up to 32 GT displays can be connected to one PLC unit without communication programs. The same screen operation is possible at a conveyor line or other remote locations, and the number of PLC units can be reduced, cutting the production process costs.

1) As the number of connected units increases, the response slows down. Check the speed in the actual line.
2) The response time becomes relatively longer than those in the case of one-to-one connection.
Please evalute whether an safficient performance can be obtained in designing the system.

Connectivity with multiple PLCs
Up to 31 PLC units can be connected to one GT unit. Progress in multiple production lines can be centrally monitored and controlled via one GT unit.

1) As the number of connected units increases, the response slows down. Check the speed in the actual line.
2) The response time becomes relatively longer than those in the case of one-to-one connection.
Please evalute whether an safficient performance can be obtained in designing the system.


Enhanced security with password protection

Password protection and operation security functions protect the data asset in the display unit and control the authorization for operation.
Password protection function
The screen data upload operation can be restricted by using passwords to protect the data asset in the display unit.Operation security function
Up to 64 operators can set individual passwords, and up to 16 levels of restrictions can be set on displays and operations for each part. The registered users and passwords can be changed on the display unit.


High-efficiency operation with through function

This function allows operators to simultaneously carry out the transfer of screen data of a GT series display and the debugging of our FP series PLC connected to the display.


Easy-to-switch language

Conventionally, screens were created for each language. With this new language switching function, data can be registered in multiple languages (up to 16) for each part. The characters can be easily edited with Microsoft Excel® and then imported.


Write device function

This function modifies the PLC data or turns bits on/off according to the PLC status or the screen No. Now four arithmetic operations between devices are also possible.


Item GT05M / GT05G GT05S
RS232C RS422 RS232C RS422
Rated voltage 24 V DC
Operating voltage range 21.6 to 26.4 V DC
Power consumption 2.4W max. 3.6W max.
Power supply unit isolation method Transfomer isolation
Ambient temperature 0 to +50 ℃ +32 to +122 ℉
Ambient humidity 20 to 85 % RH (at +25 ℃ +77 ℉), No condensation
Storage temperature –20 to +60 ℃ –4 to +140 ℉
Storage humidity 10 to 85 % RH (at +25 ℃ +77 ℉), No condensation
Vibration resistance 10 to 55 Hz (1-minute cycle):Double amplitude: 0.75 mm 0.030 in, 10 minutes in each of the X, Y, and Z directions
Shock resistance 98 m/s2 min: 4 times in each of the X, Y, and Z directions
Superposed noise
1,000 V [P-P] min, pulse width of 50 ns, 1 ms between power supply terminals (by a noise simulator)
Environmental resistance IP65 (in the initial stages) (Note 1)
Mass 230 g approx.
Display Display device TFT monochrome LCD (Note 5) TFT color LCD (Note 6)
Resolution 320 (W) x 240 (H) dots
Display color 2 colors (black/white) 4,096 colors
Displayable area 70.6 (W) x 52.9 (H) mm 2.780 (W) x 2.082 (H) in
(Note 5)
70.3 (W) x 52.7 (H) mm 2.768 (W) x 2.075 (H) in
(Note 6)
Backlight GT05M: 3-color LED (white, red, pink)
GT05G: 3-color LED (green, orange, red)
White LED
Functions Font types Fixed (GTWIN) : 8 x 8, 16 x 8, and 16 x 16 dots Characters can be displayed in the 1, 2, 4, or 8 times width or height.
TrueType (GTWIN): 10 to 240 dots
Windows ®: 10 to 240 dots
Languages Japanese, English, Simplified Chinese, Traditional Chinese, Korean, German, Italian, Spanish, French, Turkish, Russian and Vietnames
Graphics Straight lines, Continuous straight lines, Squares, Circles, Ovals, Arcs, Elliptic arcs, Fan shapes, Elliptic fan shapes, Beveled squares and Bitmaps
Number of screens(Note 2) Approx. 240 screens Approx. 180 screens
Screen No. No. 0 to 3FF
Part functions Messages, Lamps, Switches, Function switches, Data, Bar graphs, Clocks, Keyboards, Line graphs, Alarm list, and Custom parts (messages, lamps, switches)
Other functions Recipe, Flow display, Write device, Language switching, GT link, Operation security, Data logging and SD recipe (Note 3)
Clock function Provided with a built-in clock. (Can also refer to and display a PLC clock.) *Buy the backup battery (AFPX-BATT).
Contrast adjustment Contrast can be adjusted by using the touch panel. (Note 5) Not adjustable (Note 6)
Buzzer Installed
Automatic communication settings The communication speed (baud rate) is automatically changed if there is no response from the target equipment.
Through function GT connected between PC and PLC allows PLC to be debugged without a direct connection to a PC.
Screen creation Dedicated software should be used. Applicable OS: Windows® 2000 / XP / Vista / 7 / 8 (Note 4)
Touch key resolution Free layout (8 dots min)
Touch key operation force 0.8 N or less
Touch key life 1 million operations or more (at +25 ℃ +77 ℉)
COM. port Communication standard Conforms to RS232C Conforms to RS422 / RS485 Conforms to RS232C Conforms to RS422 / RS485
External communication conditions Baud rate: 9,600/19,200/38,400/57,600/115,200 bps
Data bits: 7 or 8 bits
Parity: None, Odd, Even
Stop bits: 1 bit
Protocol Our FP series supported/General-purpose serial interface supported/Other companies’ PLC supported (Refer to the compatible PLC list for manufacturers and models.)
Connector Connector terminal base (8 pins)
Screen data transfer interface Communication standard USB 1.1
Protocol Our dedicated protocol
Connector USB TYPE-B
User’s memory Memory F-ROM
Capacity 2 Mbyte 12 Mbyte
Memory backup Memory SRAM
Backup battery Lithium battery (replaceable) AFPX-BATT (Does not include with product.)
  1. This protective structure condition applies to the front surface of the installed panel. This condition does not guarantee usage in all environments provided by users. When reattaching the panel, replace the waterproof packing.
  2. The number of screens that can be registered varies according to the registered contents.
  3. The data logging and SD recipe functions are available with only models equipped with an SD / SDHC memory card slot.
  4. The 64-bit version is not supported except for Windows® 7 / 8.
  5. The display has been changed STN LCD to TFT LCD from production in March 2016.
  6. The display has been changed STN LCD to TFT LCD from production in December 2011.

Conformance to the UL/cUL standards

UL/cUL file No. UL Standard No.
E96300 UL508
