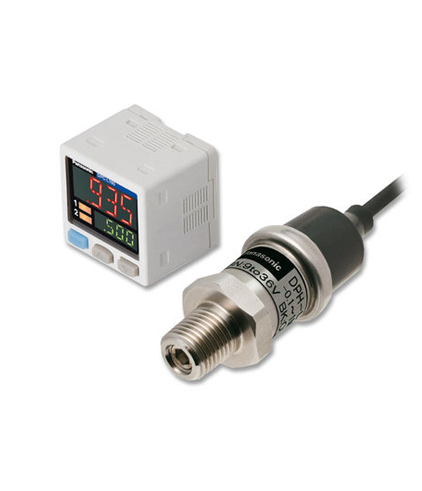

High accuracy & resolution
CE Approved
CE : EMC Directive
■All-stainless-steel construction
・Suitable for use with a wide range of fluids
・Oil-less diaphragm
■High-precision pressure control at a system accuracy of within 1% F.S.
■The sensor head generates analog voltage output, allowing it to be used in a standalone configuration.
■Product line
■Direct setting of threshold value
“Current value” and “Threshold value” can be checked at the same time.
The threshold value can be changed in RUN mode directly.
3-color display (Red, Green, Orange)
The main display changes color in line with changes in the status of output ON / OFF operation, and it also changes color while setting is in progress. The sensor status can therefore be understood easily, and operating errors can be reduced.
■Setting operation mode has a 3-level configuration to suit the frequency of use.
The setting levels are clearly separated into “RUN mode” for operation settings that are carried out daily, “MENU SETTING mode” for basic settings, and “PRO mode” for special and detailed setting. These make setting operations easy to understand and easy to carry out.
■1 model to suit a wide variety of applications
■Equipped with independent dual output
Equipped with two independent comparative outputs, and separate sensing modes can be selected for each of them. Since there are two comparative outputs, one of the comparative outputs can even be used for alarm output. In addition, if an output is not being used, it can be disabled.
■Equipped with auto-reference / remote zero-adjustment functions
If the reference pressure of the device changes, the autoreference function partially shift the comparative output judgment level by the amount that the reference pressure shifts, and the remote zero-adjustment function can reset the display value to zero via external input. These functions are ideal for places where the reference pressure fluctuates wildly, or where fine settings are desired.
■Copy function reduces man-hours and human error
Copy of the setting details for the master sensor can be transmitted as data to the other sensors. If making the same settings for multiple sensors, this prevents setting errors from occurring with the other sensors and also reduces the number of changes required to instruction manuals when equipment designs are changed.
■Energy-saving design! Equipped with an ECO mode
This mode lowers the display luminance to cut power consumption.
■Setting details can be understood at a glance
The setting details (output, response time and external input, etc.) appear in the digital display. Because the settings are in numeric form that can be easily understood.
■Power supply cable can be connected with one-touch connection
The accessory connector attached cable (2 m 6.562 ft) can be connected easily with one-touch connection
■Hold functions
●Peak / Bottom hold 1 (standard)
The peak values and bottom values for fluctuating pressures can be displayed using the dual display.
●Peak / Bottom hold 2 (output-linked) [NEW FEATURE]
![Peak / Bottom hold 2 (output-linked) [NEW FEATURE]](https://www.wentech.com.my/cms/cms/wp-content/uploads/2016/05/DPH-L100-pic19.jpg)
When output turns on (or off), the controller’s digital display (current value) is reset and peak / bottom hold operation starts. For example, this functionality could be used to verify the peak pressure for an industrial press each time a workpiece is loaded.
●Current value hold [NEW FEATURE]
The controller’s digital display (current value) is held while external input is on. By activating external input the moment you wish to capture the pressure value, you can pause and verify the display.
![Current value hold [NEW FEATURE]](https://www.wentech.com.my/cms/cms/wp-content/uploads/2016/05/DPH-L100-pic20.jpg)
■Tight installation to panels is possible
An exclusive mounting bracket MS-DP1-2 that is suitable for 1 to 6 mm 0.039 to 0.236 in panel thickness is available.
| Type | Compound pressure | Positive pressure | |||
|---|---|---|---|---|---|
| -0.1 to 1 MPa type | 1 MPa type | 3.5 MPa type | 10 MPa type | 50 MPa type | |
| Model No. | DPH-L113V | DPH-L113 | DPH-L133 | DPH-L114 | DPH-L154 |
| Type of pressure | Sealed gauge pressure (Note 4) | ||||
| Rated pressure range | -0.1 to +1 MPa | 0 to +1 MPa | 0 to +3.5 MPa | 0 to +10 MPa | 0 to +50 MPa |
| Pressure withstandability | 2 MPa | 2 MPa | 7 MPa | 20 MPa | 75 MPa |
| Applicable fluid | Gases and fluids that do not corrode SUS630, SUS304, or SUSXM7 | ||||
| Supply voltage | 9 to 36 V DC [9 to 32 V DC when using the attached connector (e-CON)] |
||||
| Current consumption | 20 mA or less | ||||
| Analog voltage output | Output voltage: 1 to 5 V DC (over rated pressure range) Accuracy: ±1.0 % F.S. (at 23 ±2 ℃ +73.4 ±35 ℉) ±2.0 % F.S. (at -20 to 70 ℃ -4 to +158 ℉) (including linearity, hysteresis and repeatability) |
Output voltage: 1 to 5 V DC (over rated pressure range) Accuracy: ±1.0 % F.S. (at 23 ±2 ℃ +73.4 ±35 ℉) ±2.0 % F.S. (at -20 to 125 ℃ -4 to +158 ℉) (including linearity, hysteresis and repeatability) |
|||
| Response time | 1 ms or less | ||||
| Protection | IP67 (IEC) | ||||
| Ambient temperature | -20 to +70 ℃ -4 to +158 ℉ (No dew condensation allowed), Storage: -30 to +70℃ -22 to +158 ℉ |
-20 to +80 ℃ (Pressure port: -20 to +125 ℃ -4 to +257 ℉, No dew condensation allowed), Storage: -30 to +100 ℃ -22 to +212 ℉ [e-CON connector (accesory): -20 to +75 ℃ -4 to +167 ℉ (Storage: -30 to +75 ℃ -22 to +167 ℉)] |
|||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | ||||
| Medium temperature range | -20 to +70 ℃ -4 to +158 ℉ | -20 to +125 ℃ -4 to +257 ℉ | |||
| Voltage withstandability | 150 V AC for one min. between all supply terminals connected together and enclosure | ||||
| Insulation resistance | 100 MΩ, or more, with 50 V DC megger between all supply terminals connected together and enclosure | ||||
| Vibration resistance | 10 to 2,000 Hz frequency, acceleration 200 m/s2, in X derection for four hours, in Y and Z directions for two hours each (Note 5) | ||||
| Shock resistance | 1,000 m/s2 acceleration in X, Y and Z directions for three times each | ||||
| Grounding method | Capacitor earth (Enclosure-supply terminal) | ||||
| Pressure port | R1/4 male thread (throttle embeded) | ||||
| Material | Diaphragm: Stainless steel (SUS603), Pressure port: Stainless steel (SUS304), Throttle: Stainless steel (SUSXM7) | ||||
| Connecting method | Connector | ||||
| Cable | 0.2 mm2 3-core heat resistant cabtyre cable 2 m 3.562 ft long | ||||
| Cable extension | Extension up to total 10 m 32.808 ft is possible with 0.2 mm2, or more, cable. | ||||
| Weight | Net weight: 100 g approx., Gross weight: 150 g approx. | ||||
| Accessory | Connector (e-CON): 1 pc. | ||||
Notes:
| NPN output | DPC-L101 | |||
|---|---|---|---|---|
| PNP output | DPC-L101-P | |||
| Applicable sensor head | DPH-L113V | DPH-L113 | DPH-L133 | |
| Rated pressure range | -0.1 to +1 MPa | 0 to +1 MPa | 0 to +3.5 MPa | |
| Set pressure range | -1.177 to +1.177 MPa -12.00 to +12.00 kgf/cm2 -11.77 to +11.77 bar -170.6 to +170.6 psi |
-1.070 to +1.070 MPa -10.91 to +10.91 kgf/cm2 -10.70 to +10.70 bar -155.2 to +155.2 psi |
-3.74 to +3.74 MPa -38.1 to +38.1 kgf/cm2 -37.4 to +37.4 bar -542 to +542 psi |
|
| Set resolution | 0.001 MPa | 0.001 MPa | 0.01 MPa | |
| Display | 4 digits +4 digits 3-color LCD display (Display refresh rate: 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
|||
| Displayable pressure range | -0.155 to +1.022 MPa -1.58 to +10.42 kgf/cm2 -1.55 to +10.22 bar -22.4 to +148.2 psi |
-0.050 to +1.020 MPa -0.51 to +10.40 kgf/cm2 -0.50 to +10.20 bar -7.2 to +148.0 psi |
-0.17 to +3.57 MPa -1.7 to +36.4 kgf/cm2 -1.7 to +35.7 bar -24 to +518 psi |
|
| Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less | |||
| Power consumption | Normal operation: 960 mW or less (Current consumption 40 mA or less at 24 V supply voltage) ECO mode (STD): 720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode (FULL): 600 mW or less (Current consumption 25 mA or less at 24 V supply voltage) Excluding the current consumption of sensor head and analog output current |
|||
| Comparative outputs (Comparative output 1, 2) |
<NPN output type> NPN open-collector transistor (2 outputs) • Maximum sink current: 50 mA • Applied voltage: 30 V DC or less (between comparative output and 0 V) • Residual voltage: 1 V or less (at 50 mA sink current) <PNP output type> |
|||
| Output operation | NO / NC, selectable by key operation | |||
| Output modes | EASY mode / Hysteresis mode / Window comparator mode | |||
| Hysteresis | Minimum 1 digit (variable) (however, 2 digits when using psi unit) | |||
| Repeatability | Within ±0.2 % F.S. | |||
| Response time | 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation | |||
| Short-circuit protection | Incorporated | |||
| Analog output | <Analog voltage output> • Output current: 1 to 5 V DC • Zero point: within 1 V ±0.5 % F.S. (excluding DPH-L113V) within 1.364 V ±0.5 % F.S. (DPH-L113V) • Span: within 4 V ±0.5 % F.S. • Linearity: within ±0.1 % F.S. • Output impedance: 1 kΩ approx. <Analog current output> |
|||
| Inputs | Sensor head input | Input voltage range: 1 to 5 V DC (over rated pressure range) | ||
| External input | <NPN output type> ON voltage: 0.4 V DC or less OFF voltage: 5 to 30 V DC, or open Input impedance: 10 kΩ approx. Input time: 1 ms or more <PNP output type> |
|||
| Operation indicator | Orange LED (Comparative output 1 operation indicator, comparative output 2 operation indicator: Lights up when each comparative output is ON ) |
|||
| Protection | IP40 (IEC) | |||
| Ambient temperature | -10 to +50 ℃ +14 to +122 ℉ (No dew condensation or icing allowed), Storage: -10 to +60 ℃+14 to +140 ℉ | |||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |||
| Voltage withstandability | 500 V AC for one min. between all supply terminals connected together and enclosure | |||
| Insulation resistance | 50 MΩ, or more, with 500 V DC megger between all supply terminals connected together and enclosure | |||
| Vibration resistance | 10 to 500 Hz frequency, amplitude 3 mm 0.118 in or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each (when panel mounting bracket is mounted: 10 to 150 Hz frequency, amplitude 0.75 mm 0.030 in or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
|||
| Shock resistance | 100 m/s2 acceleration in X, Y and Z directions for three times each | |||
| Temperature characteristics | Within ±0.5 % F.S. (ambient temperature range based on +20 ℃ +68 ℉) | |||
| Material | Enclosure: PBT (glass fiber reinforced), LCD display: Acrylic, Mounting threaded part: Brass (nickel plated), Switch part: Silicone rubber |
|||
| Connecting method | Connector | |||
| Cable length | Total length up to 100 m 328.1 ft (less than 30 m 98.4 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable. | |||
| Weight | Net weight: 25 g approx. (excluding connector attached cable), Gross weight: 140 g approx. |
|||
| Accessories | CN-66A-C2 (Connector attached cable 2 m 6.562 ft), Pressure unit label: 1 set | |||
| NPN output | DPC-L101 | ||
|---|---|---|---|
| PNP output | DPC-L101-P | ||
| Applicable sensor head | DPH-L114 | DPH-L154 | |
| Rated pressure range | 0 to +10 MPa | 0 to +50 MPa | |
| Set pressure range | -10.70 to +10.70 MPa -109.1 to +109.1 kgf/cm2 -107.0 to +107.0 bar -1552 to +1552 psi |
-53.5 to +53.5 MPa -545 to +545 kgf/cm2 -535 to +535 bar -1980 to +7760 psi |
|
| Set resolution | 0.01 MPa | 0.1 MPa | |
| Display | 4 digits +4 digits 3-color LCD display (Display refresh rate: 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
||
| Displayable pressure range | -0.50 to +10.20 MPa -5.1 to +104.0 kgf/cm2 -5.0 to +102.0 bar -72 to +1480 psi |
-2.5 to +51.0 MPa -25 to +520 kgf/cm2 -25 to +510 bar -360 to +7400 psi |
|
| Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less | ||
| Power consumption | Normal operation: 960 mW or less (Current consumption 40 mA or less at 24 V supply voltage) ECO mode (STD): 720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode (FULL): 600 mW or less (Current consumption 25 mA or less at 24 V supply voltage) Excluding the current consumption of sensor head and analog output current |
||
| Comparative outputs (Comparative output 1, 2) |
<NPN output type> NPN open-collector transistor (2 outputs) • Maximum sink current: 50 mA • Applied voltage: 30 V DC or less (between comparative output and 0 V) • Residual voltage: 1 V or less (at 50 mA sink current) <PNP output type> |
||
| Output operation | NO / NC, selectable by key operation | ||
| Output modes | EASY mode / Hysteresis mode / Window comparator mode | ||
| Hysteresis | Minimum 1 digit (variable) (however, 2 digits when using psi unit) | ||
| Repeatability | Within ±0.2 % F.S. | ||
| Response time | 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation | ||
| Short-circuit protection | Incorporated | ||
| Analog output | <Analog voltage output> • Output current: 1 to 5 V DC • Zero point: within 1 V ±0.5 % F.S. (excluding DPH-L113V) within 1.364 V ±0.5 % F.S. (DPH-L113V) • Span: within 4 V ±0.5 % F.S. • Linearity: within ±0.1 % F.S. • Output impedance: 1 kΩ approx. <Analog current output> |
||
| Inputs | Sensor head input | Input voltage range: 1 to 5 V DC (over rated pressure range) | |
| External input | <NPN output type> ON voltage: 0.4 V DC or less OFF voltage: 5 to 30 V DC, or open Input impedance: 10 kΩ approx. Input time: 1 ms or more <PNP output type> |
||
| Operation indicator | Orange LED (Comparative output 1 operation indicator, comparative output 2 operation indicator: Lights up when each comparative output is ON ) |
||
| Protection | IP40 (IEC) | ||
| Ambient temperature | -10 to +50 ℃ +14 to +122 ℉ (No dew condensation or icing allowed), Storage: -10 to +60 ℃+14 to +140 ℉ | ||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | ||
| Voltage withstandability | 500 V AC for one min. between all supply terminals connected together and enclosure | ||
| Insulation resistance | 50 MΩ, or more, with 500 V DC megger between all supply terminals connected together and enclosure | ||
| Vibration resistance | 10 to 500 Hz frequency, amplitude 3 mm 0.118 in or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each (when panel mounting bracket is mounted: 10 to 150 Hz frequency, amplitude 0.75 mm 0.030 in or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
||
| Shock resistance | 100 m/s2 acceleration in X, Y and Z directions for three times each | ||
| Temperature characteristics | Within ±0.5 % F.S. (ambient temperature range based on +20 ℃ +68 ℉) | ||
| Material | Enclosure: PBT (glass fiber reinforced), LCD display: Acrylic, Mounting threaded part: Brass (nickel plated), Switch part: Silicone rubber |
||
| Connecting method | Connector | ||
| Cable length | Total length up to 100 m 328.1 ft (less than 30 m 98.4 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable. | ||
| Weight | Net weight: 25 g approx. (excluding connector attached cable), Gross weight: 140 g approx. |
||
| Accessories | CN-66A-C2 (Connector attached cable 2 m 6.562 ft), Pressure unit label: 1 set | ||
Notes:
