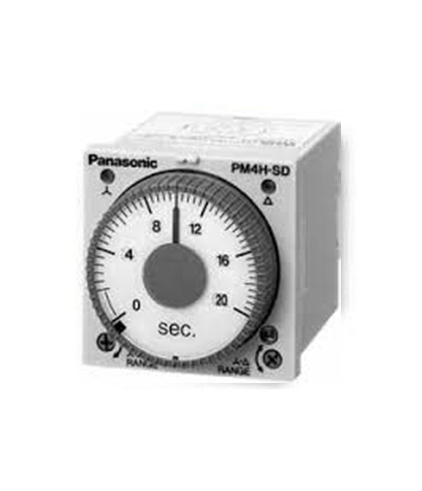

PM4H-SD/SDM Star-Delta Timers

DIN48 SIZE ANALOG STAR()-DELTA () TIMERS

UL/C-UL , CE , Lloyd Approved

Share this

1.Select four types of time ranges between 0.2 s and 100 s on a single unit.

2.Select between five types of time ranges between 0.04 s and 0.7 s for the switching times.

3.There is a  switching indicator so you can check the operation at a glance.

4.The AC free power supply and shorter body make it easier to use.

5.Compliant with UL, CSA, CE and LLOYD



Time Range

Operating (s)- switching time (s)
Time range unit
Time range
sec
2 0.2s to 2s
10 1s to 10s
20 2s to 20s
100 10s to 100s
0.04 sec(s)
0.1
0.3
0.5
0.7

Operation

0PM4H-SD-pic2

Specifications


Type Item PM4H-SD/SDM
Rating Rated operating voltage 100 to 240V AC, 24V AC
Rated frequency 50/60Hz common
Rated power consumption Approx. 6VA (100 to 240V AC) Approx. 1.4VA (24V AC)
Rated control capacity 5A 250V AC (resistive load)
Operation mode star-delta switching (Power ON-delay)
 operation control time range 2s to 100s, 4 time ranges switchable
 switching time 0.04, 0.1, 0.3, 0.5, 0.7s (5 time range selectable)
Time accuracy
Note:)
Operation time fluctuation ±0.3% (power off time change at the range of 0.1s to 1h)
Setting error ±5% (Max. setting time value)
Voltage error ±0.5% (at the operating voltage changes between 85 to 110%)
Temperature error ±2% (at 20°C ambient temp. at the range of -10 to +50°C +14 to +122°F)
Contact Contact arrangement Star () side: Timed-out 1 Form A Delta () side: Timed-out 1 Form A
Instantaneous: 1 Form A (Instantaneous for PM4H-SDM type only)
Contact resistance (Initial value) Max. 100mohm (at 1A 6V DC)
Contact material Au flash on Silver alloy
Life Mechanical (contact) 2×107
Electrical (contact) 105 (at rated control capacity)
Electrical function Allowable operating voltage range 85 to 110% of rated operating voltage (at 20°C coil temp.)
Insulation resistance (Initial value) Min. 100Mohm Between live and dead metal parts
Between input and output
Between contacts of different poles *3
Between contacts of same pole
(At 500V DC)
Breakdown voltage (Initial value) 2, 000Vrms for 1 min Between live and dead metal parts
2, 000Vrms for 1 min Between input and output
2, 000Vrms for 1 min Between contacts of different poles *3
1, 000Vrms for 1 min Between contacts of same pole
Min. power off time 500ms
Max. temperature rise 65°C/ 131°F
Mechanical function Vibration resistance Functional 10 to 55Hz: 1 cycle/min double amplitude of 0.25mm (10min on 3 axes)
Destructive 10 to 55Hz: 1 cycle/min double amplitude of 0.375mm (1h on 3 axes)
Shock resistance Functional Min. 294m/s2 (4 times on 3 axes)
Destructive Min. 980m/s2 (5 times on 3 axes)
Operating condition Ambient temperature -10 to +50°C/ +14 to +122°F
Ambient humidity Max. 85%RH (non-condensing)
Atmospheric pressure 860 to 1, 060hPa
Others Protective construction IP65 on front panel (using rubber gasket ATC 18002) <only for IP65 type>
Weight 100g/ 3.527 oz (Pin type), 110g/ 3.880 oz (Screw terminal type)



  1. Unless otherwise specified, the measurement conditions at the maximum scale time standard are specified to be the rated operating voltage, 20℃/ 68℉ ambient temperature, and 1s power off time.
  2. For the 2s range, the tolerance for each specification becomes ±10ms.
  3. Between contacts of different poles for SDM type only.
