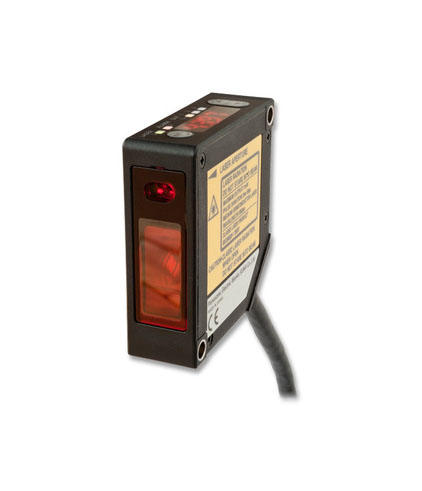

HL-G1 Measurement Sensor

HL-G1 Series

Panasonic has developed and produced laser distance sensors for more than 20 years. Using our well established triangulation method and state-of-the-art laser technology, our sensors are able to handle high resolution measurement regardless of background color and surface conditions.

Share this

HL-G1 Series

Panasonic has developed and produced laser distance sensors for more than 20 years. Using our well established triangulation method and state-of-the-art laser technology, our sensors are able to handle high resolution measurement regardless of background color and surface conditions.
Although HL-G1 boasts features and performance indicative of high-end laser sensors, its price is that of a middle-class laser sensor. Such high-end features include:

  • a resolution of 0.5µm
  • an integrated display for monitoring measurement results, status and settings
  • 3 transistor outputs, 2 analog outputs and serial output (high-functionality type)
  • a new CMOS receiving element that has revolutionized high accuracy

Options:

  • Cables 2m, 5m, 10m, 20m
  • Touch panels (Panasonic AIG02Q14D/AIG02MQ15D)
  • Touch panels (Panasonic AIG12GQ14D/AIG12GQ15D/ AIG12MQ14D/AIG12MQ15D)

Specifications

Laser analog sensor (diffuse reflective type)
Standard type HL-G103-A-C5 HL-G105-A-C5 HL-G108-A-C5 HL-G112-A-C5 HL-G125-A-C5
High functionality HL-G103-S-J HL-G105-S-J HL-G108-S-J HL-G112-S-J HL-G125 S-J
Laser class 2
Analog output 0 – 10V / 4 – 20mA
Measuring range 30 ± 4mm 50 ± 10mm 85 ± 20mm 120 ± 60mm 250 ± 150mm
Beam size 0.1 x 0.1mm 0.5 x 1mm 0.75 x 1.25mm 1.0 x 1.5mm 1.75 x 3.5mm
Sampling rate 200µs, 500µs, 1ms, 2ms
Resolution 0.5µm 1.5µm 2.5µm 8µm 20µm
Linearity +/- 0,1% F.S.
Laser wavelength 655nm
Max. power of the emitting element 1mW
Transistor output max. 50mA
Communication interfaces High functionality type only: RS422 or RS485 (selectable)
Material Enclosure: PBT / Front Cover: Acrylic / Cable: PVC
Protection IP67
Physical size (HxWxL) 60 x 57 x 20.4mm
Cable Standard type: 5m
High functionality type: cable with connector, 0.5m
Cable extension Extension up to total 20 m is possible with optional cable (Cable for standard type cannot be extended).
Operating voltage 24V DC (+/-10%)
Ambient temp. -10°C to +45°C, storage: -20°C to +60°C
Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Weight (approx.) HL-G1xx-A-C5 320g and HL-G1xx-S-J 110g



Laser analog sensor (specular reflected type)
Standard type HL-G103A-RA-C5 HL-G105A-RA-C5 HL-G108A-RA-C5
High functionality HL-G103A-RS-J HL-G105A-RS-J HL-G108A-RS-J
Laser class 2
Analog output 0 – 10V / 4 – 20mA
Measuring range 26.3 ± 2mm 47.30 ± 5mm 82.9 ± 10mm
Beam size 0.1 x 0.1mm 0.2 x 0.2mm
Sampling rate 200µs, 500µs, 1ms, 2ms
Resolution 0.5µm 1.5µm 2.5µm
Linearity +/- 0.1% F.S.
Laser wavelength 655nm
Max. power of the emitting element 1mW
Transistor output max. 50mA
Communication Interfaces High functionality type only: RS-422 or RS-485 (selectable)
Material Enclosure: PBT / Front Cover: Acrylic / Cable: PVC
Protection IP67
Physical size (HxWxL) 60 x 57 x 20.4mm
Cable Standard type: 5m
High functionality type: cable with connector, 0.5m
Cable extension Extension up to total 20m is possible with optional cable (Cable for standard type cannot be extended).
Operating Voltage 24V DC (+/-10%)
Ambient temp. -10°C to +45°C, storage: -20°C to +60°C
Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Weight (approx.) HL-G1xx-A-C5 380g and HL-G1xx-S-J 160g

Applications

Product Feature Product Feature Product Feature
Control of hollow pipe positioning Measurement of actuator part insertion depth Detection of aluminum wheel grooves
