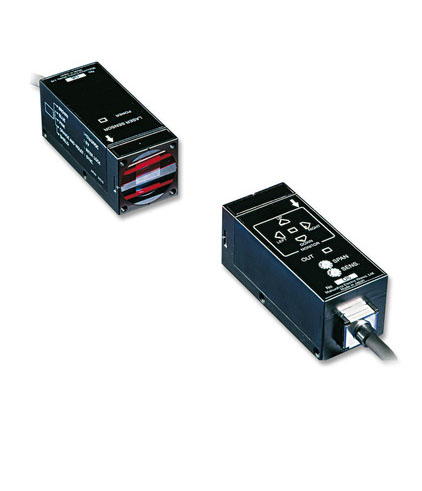

This laser sensor operates with a laser “belt” of 15mm width. Nevertheless, an object of ø 0.1mm will be detected over the 500 mm sensing range with a repeatability of approx. 10µm. Adjusting the emitter and receiver is very easy as a positioning monitor leads to the best position. This laser sensor conforms to class 1, so safety measures are not necessary.
This laser sensor operates with a laser “belt” of 15mm width. Nevertheless, an object of ø 0.1mm will be detected over the 500 mm sensing range with a repeatability of approx. 10µm. Adjusting the emitter and receiver is very easy as a positioning monitor leads to the best position. This laser sensor conforms to class 1, so safety measures are not necessary.
Characteristics:
| LA-510 | |
|---|---|
| Laser class | 1 |
| Sensing width | 15mm |
| Sensing range | 500mm |
| Min. sensing object | Ø 0.1mm |
| Repeatability | </= 10µm |
| Response time | 0.5ms |
| Analogue output | 1 – 5V, 75W |
| Digital output | Transistor, max. 100mA, NPN |
| Laser wavelength | 780nm |
| Max. output of laser diode |
1.7mW |
| Consumption | Emitter: 35mA, Receiver: 25mA |
| Housing material | Zinc alloy die cast |
| Degree of protection | IP40 |
| Size | 75 x 32 x 32mm |
| Connection method | Cable, 3m |
| Operating voltage | 12 – 24V DC (±10%) |
| Usable ambient temp. | 0°C to +50°C |
| Weight (approx.) | 570g |
 |
 |
 |
| Orientation sensing | Presence sensing | Positioning sensing |
