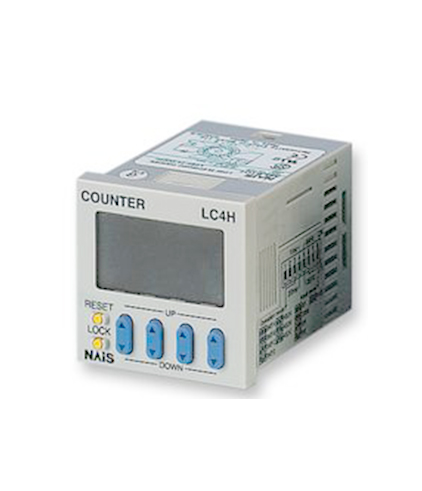

LC4H Electronic Counters(DIN 48)

DIN 48 SIZE LCD ELECTRONIC COUNTER

UL/C-UL , CE Approved

Share this
4-digit display 6-digit display Pin type Screw terminal type



1.Bright and Easy-to-Read Display

A brand new bright 2-color backlight LCD display. The easy-to-read screen in any location makes checking and setting procedures a cinch.



2.Simple Operation

Seesaw buttons make operationg the unit even easier than before.



3.Short Body of only 64.5mm/ 2.539inch(screwtype) or 70.1mm/ 2.760inch(pin type)

With a short body, it easily installs in even narrow control panels.



4.Conforms to IP66’s Weather Resistant Standards

The water-proof panel keeps out water and dirt for reliable operation even in poor environments.



5.Screw terminal and Pin Type are Both Standard Options

The two terminal types are standard options to support either front panel installation or embedded installation.



6.Changeable Panel Cover

Also offers a black panel cover to meet your design considerations.



7.4-digit or 6-digit display

Two sizes of displays are offered for you to choose the one that suits your needs.



8.Compliant with UL, c-UL and CE.



Setting The Operation Mode and Set Value

1.Setting the operation mode (input mode and output mode)

Set the input and output modes with the DIP switches on the side of the counter.



2.Setting the set value

Set the set value with the UP and DOWN keys on the front of the counter.

Front display section

4-digit display type

  • 1.Counter display
  • 2.Set value display
  • 3.Controlled output indicator
  • 4.Reset indicator
  • 5.Lock indicator
  • 6.UP keys
    Changes the corresponding digit of the set value in the addition direction (upwards).
  • 7.DOWN keys
    Changes the corresponding digit of the set value in the subtraction direction (downwards).
  • 8.RESET switch
    Resets the counting value and the output.
  • 9.LOCK switch
    Locks the operation of all keys on the counter.



6-digit display type

  • 1.Counter display
  • 2.Set value display
  • 3.Controlled output indicator
  • 4.Reset indicator
  • 5.Lock indicator
  • 6.UP keys
    Changes the corresponding digit of the set value in the addition direction (upwards).
  • 7.RESET switch
    Resets the counting value and the output.
  • 8.LOCK switch
    Locks the operation of all keys on the counter.





3.Changing the set value

1.It is possible to change the set value with the up and down keys (4- digit type only) even during counting. However, be aware of the following points.
  • 1.If the set value is changed to less than the count value with counting set to the addition direction, counting will continue until it reaches full scale (9999 with the 4-digit type and 999999 with the 6-digit type), returns to zero, and then reaches the new set value. If the set value is changed to a value above the count value, counting will continue until the count value reaches the new set value.
  • 2.Suppose that the counter is preset to count down. Whether a preset countdown value is smaller or larger than the count value, the counter counts down to “0(Zero)”.
2.If the set value is changed to “0,” the unit will not complete count-up. It starts counting up when the counting value comes to “0 (Zero)” again.
  • 1.Up-count (addition) input when counting is set to the addition direction, counting will continue until full scale is reached (9999 with the 4-digit type and 999999 with the 6-digit type), return to zero, and then complete count-up.
  • 2.Down-count (subtraction) input when counting is set to the subtraction direction, counting will continue until full scale is reached (-999 with the 4-digit type and -99999 with the 6-digit type), and then the display will change to [- – – -] with the 4-digit type and [- – – – – -] with the 6-digit type. The counting value does not become “0” and so the counter does not count up.
  • 3.For directive, independent, and phase input, when the counting value increases or decreases from the value “0” and then returns back to the value “0,” count-up is completed.

Operation Modes

1.Input mode

For the input mode, you can choose one of the following five modes

  • Addition [UP]
  • Subtraction [DOWN]
  • Directive [DIR]
  • Independent [IND]
  • Phase [PHASE]
Input mode Operation *Minimum input signal width 30 Hz: 16.7 ms; 5 kHz: 0.1 ms
Addition
[UP]
IN1 or IN2 works as an input block (gate) for the other input. Example where IN1 is the count counting and IN2 is the input block (gate).

Example where IN2 is the counting input and IN1 is the input block (gate).

*”A” must be more than the minimum input signal width.
Subtraction
[DOWN]
Directive
[DIR]
IIN1 is the counting input and IN2 is the addition or subtraction directive input. IN2 adds at L level and subtracts at H level.
* “A” must be more than the minimum input signal width.
Independent
[IND]
IN1 is addition input and IN2 is subtraction input.
IN1 and IN2 are completely independent, so there is no restriction on signal timing.
Phase
[PHASE]
Addition when the IN1 phase advances beyond IN2, and subtraction when the IN2 phase advances beyond IN1.
* “B” must be more than the minimum input signal width.

2.Output mode

For the output mode, you can choose one of the following seven modes

  • Maintain output/hold count [HOLD-A]
  • Maintain output/over count I [HOLD-B]
  • Maintain output/over count II [HOLD-C]
  • One shot/over count [SHOT-A]
  • One shot/recount I [SHOT-B]
  • One shot/recount II [SHOT-C]
  • One shot/hold count [SHOT-D]
Output mode Operation (Example when input mode is either addition or subtraction)
Maintain output
Hold count
[HOLD-A]
Output control is maintained after count-up completion and until resetting. During that time, the count display does not change from that at count-up completion.
*n:Set value
Maintain output
Over count I
[HOLD-B]
Output control is maintained after count-up completion and until resetting. However, counting is possible despite completion of count-up.
*n:Set value
Maintain output
Over count II
[HOLD-C]
Output control is maintained after count-up completion and until the next signal enters. However, counting is possible despite completion of countup.
*n:Set value
One shot
Over count
[SHOT-A]
Output control is maintained after count-up completion for a fixed time (approx. 1 sec). Counting is possible despite completion of count-up.
*n:Set value
One shot
Recount I
[SHOT-B]
Output control is maintained after count-up completion for a fixed time (approx. 1 sec). Counting is possible despite completion of count-up. However, reset occurs simultaneous with completion of count-up. While output is being maintained, restarting of the count is not possible
*n:Set value
One shot
Recount II
[SHOT-C]
Output control is maintained after count-up completion for a fixed time (approx. 1 sec). Counting is possible despite completion of count-up. However, reset occurs simultaneous with output OFF.
*n:Set value
One shot
Hold count
[SHOT-D]
Output control is maintained after count-up completion for a fixed time (approx. 1 sec). During that time, the count display does not change from that at count-up completion. Reset occurs simultaneous with output OFF.
*n:Set value



Specifications

Type Ralay output type Transistor output type
Item AC type DC type AC type, AC/DC type DC type
Rating Rated operating voltage 100 to 240 V AC, 24 V AC 12 to 24 V DC 100 to 240 V AC, 24 V AC, 24 V AC/DC 12 to 24 V DC
Rated frequency 50/60 Hz common 50/60 Hz common
Rated power consumption Max. 10 V A Max. 3 W Max. 10 V A Max. 3 W
Rated control capacity 5 A 250 V AC (resistive load) 100 mA 30 V DC
Input mode Addition (UP)/Subtraction (DOWN)/Direction (DIR)/Individuality (IND)/Phase (PHASE)
5 modes selectable by DIP switch
Max. counting speed 30 Hz/5 kHz (selectable by DIP switch)
Counting input (Input 1, 2) Min. input signal width: 16.7 ms at 30 Hz/0.1 ms at 5 kHz, ON time: OFF time = 1:1
Reset input Min. input signal width: 1 ms, 20 ms (selected by DIP switch)
Lock input Min. input signal width: 20 ms
Input signal Contact or Open collector input/Input impedance: 1 kΩ or less, Input residual voltage: 2 V or less,
Open impedance: 100 kΩ or more, Max. energized voltage: 40 V DC
Output mode HOLD-A/HOLD-B/HOLD-C/SHOT-A/SHOT-B/SHOT-C/SHOT-D (7 modes selectable by DIP switch)
One shot output time Approx. 1 s
Indication 7-segment LCD, Counter value (backlight red LED), Setting value (backlight yellow LED)
Digit 4-digit display type –999 to 9999 (–3 digits to +4 digits) (0 to 9999 for setting)
6-digit display type –99999 to 999999 (–5 digits to 6 digits) (0 to 999999 for setting)
Memory EEP-ROM (Overwriting times: 105 ope. or more)
Contact Contact arrangement Relay (1c/1a*)
*8-pin type only
1 Form A (Open collector)
Initial contact resistance 100 mΩ (at 1 A 6 V DC)
Contact material Ag alloy/Au flush
Life Mechanical (contact) 2×107 ope. (Except for switch operation parts)
Electrical (contact) 105 ope. (At rated control voltage) 107 ope. (At rated control voltage)
Electrical Allowable operating voltage range 85 to 110 % of rated operating voltage
Break down voltage
(Initial value)
Between live and dead metal parts: 2,000 Vrms for 1 min (11-pin type)
Between input and output: 2,000 Vrms for 1 min
Between open contacts: 1,000 Vrms for 1 min
Between live and dead metal parts: 2,000 Vrms for 1 min (11-pin type)
Between input and output: 2,000 V AC for 1 min
Insulation resistance (At 500 V DC) (Initial value) Between live and dead metal parts: Min. 100 MΩ (11-pin type)
Between input and output: Min. 100 MΩ
Between open contact: Min. 100 MΩ
Between live and dead metal parts: Min. 100 MΩ (11-pin type)
Between input and output: Min. 100 MΩ
Temperature rise Max. 65°C (under the flow of nominal operating current at nominal voltage)
Mechanical Vibration
resistance
Functional 10 to 55 Hz (1 cycle/min), single amplitude: 0.35 mm (10 min on 3 axes)
Destructive 10 to 55 Hz (1 cycle/min), single amplitude: 0.75 mm (1 h on 3 axes)
Shock
resistance
Functional Min. 98 m 321.522 ft./s2 (4 times on 3 axes)
Destructive Min. 294 m 964.567 ft./s2 (5 times on 3 axes)
Operating
conditions
Ambient temperature –10°C to 55°C/ +14°F to +131°F
Ambient humidity Max. 85 % RH (non-condensing)
Air pressure 860 to 1,060 h Pa
Ripple rate 20 % or less 20 % or less
Connection 8-pin/11-pin/screw terminal
Protective construction IP66 (front panel with a rubber gasket)
