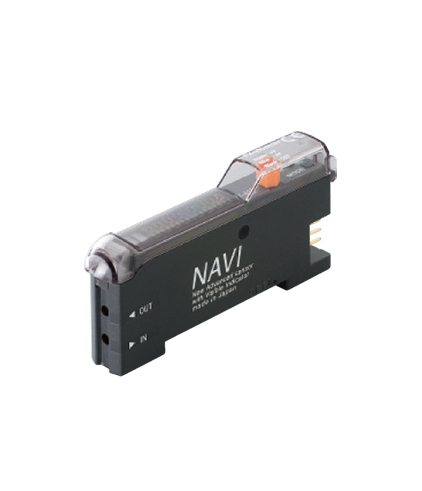

Just “Look” and “Turn”, simple, easy-to-use fiber sensor
UL/C-UL , CE , Korean S Mark Approved
CE : EMC Directive
UL : Recognition(Excluding FX-412□)
Korea's S-mark certification : Excluding FX-412□ and PNP output type
The incident light intensity and threshold value can be checked at the same time with no operations needed. In addition, no complex mode settings are needed when the values are adjusted.
The threshold value adjuster and operation mode switch are large and easy to see, and they can be operated with the same sensitivity as general-purpose photoelectric sensors. Functions which are not commonly used can be operated using a non-obtrusive setting switch.
Accurate control of the adjuster threshold values by using numerical values is possible due to the digital display. This allows anybody to perform the same settings.
This sensor uses the R.S.S.* adjuster with a compact encoder inside. The sensitivity amount changes depending on the rotation speed of the adjuster, so that adjustment can be carried out speedily.
Standard screwdrivers can be used to turn the adjuster as well as precision screwdrivers. In addition, an “endless” mechanism is used which eliminates the possibility of any damage being caused by turning the adjuster too far.
The adjuster can be turned directly by finger, without the need for a screwdriver
![Beam power greatly increased to give strong performance under adverse environments [Red LED type]](https://www.wentech.com.my/cms/cms/wp-content/uploads/2016/05/FX-410-pic09.jpg)
The beam power has been greatly increased. This means a longer sensing distance and less trouble from problems such as dust. These sensors have ample performance for workplace needs.
Different sensors can be selected to suit the application.
Color combinations that can be discerned during mark sensing
![Improved stability over both long and short terms [Red LED type]](https://www.wentech.com.my/cms/cms/wp-content/uploads/2016/05/FX-410-pic12.jpg)
The red LED type sensors have a “four-chemical emitting element” which maintains stability of light emissions for long-term operation. Furthermore, all models have an “APC (Auto Power Control) circuit” which improves stability at times such as when the power is turned on. These features improve overall stability compared to previous models.
The same quick-connection cable that is used for sensors such as the FX-300 series of digital fiber sensors is used. This means that they can be used together with other types of sensors such as laser sensors, and the number of power supply cables can be reduced.
![Excellent workability and ease of maintenance [Connector type]](https://www.wentech.com.my/cms/cms/wp-content/uploads/2016/05/FX-410-pic13.jpg)
The sensors can be connected together with other sensors such as the FX-300 series of digital fiber sensors and the GA-311 of inductive proximity sensors. In addition, the SC series of sensor PLC connection units with MIL connector compatibility can also be used to further reduce the amount of wiring.
This fiber sensor is the smallest among the dual digital display types, contributing to device miniaturization.
In cases where the incoming light level can become saturated, such as during close-range sensing or when sensing transparent or minute objects, the sensor’s lightemitting amount can be adjusted to provide more stable sensing without changing the response time.
![Ideal for dealing with saturation / Light-emitting amount selection function [Red LED type]](https://www.wentech.com.my/cms/cms/wp-content/uploads/2016/05/FX-410-pic15.jpg)
Equipped with OFF-delay / ON-delay / ONE SHOT timer.
(Timer period: 1 to 3 sec. approx.)
The digital display can be turned upside-down if required to suit the setup location. In addition, a stability indicator is also provided, so that the amount of light-receiving excess can be checked even when the display is turned off.
The optical communication function allows up to a maximum of eight sets of fiber heads (four sets for FAST and STD settings) to be installed in contact with each other without mutual interference occurring. (Set automatically when power is turned on.)
Peak and bottom hold values for the incident light intensity can be displayed. This is useful for checking the incident light intensity during tasks such as drop detection.
In addition, the peak and bottom values can be checked while looking at the threshold value, which makes adjustment much easier.
This prevents the operator from changing the threshold value by mistake.
| Type | Red LED | Blue LED | Green LED | |
|---|---|---|---|---|
| Model No. | NPN output | FX-411 | FX-411B | FX-411G |
| FX-412 (Note 2) | FX-412B (Note 2) | FX-412G (Note 2) | ||
| PNP output | FX-411P | FX-411BP | FX-411GP | |
| Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less | |||
| Power consumption | <Red LED type> Normal operation: 960 mW or less (Current consumption 40 mA or less at 24 V supply voltage) ECO mode: 840 mW or less (Current consumption 35 mA or less at 24 V supply voltage) <Blue LED / Green LED type> Normal operation: 720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode: 580 mW or less (Current consumption 24 mA or less at 24 V supply voltage) |
|||
| Output | <NPN output type> NPN open-collector transistor • Maximum sink current: 100 mA (50 mA, if five, or more, amplifiers are connected in cascade) • Applied voltage: 30 V DC or less (between output and 0 V) • Residual voltage: 1.5 V or less [at 100 mA sink current (50 mA, if five, or more, amplifiers are connected in cascade)] <PNP output type> |
|||
| Utilization category | DC-12 or DC-13 | |||
| Output operation | Switchable either Light-ON or Dark-ON | |||
| Short-circuit protection |
Incorporated | |||
| Response time | 150 μs or less (FAST), 500 μs or less (STD), 4.5 ms or less (U-LG) selectable with setting switch | |||
| Operation indicator | Orange LED (lights up when the output is ON) | |||
| Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) | |||
| Timer function | Incorporated with variable ON-delay / OFF-delay / ONE SHOT timer, switchable either effective or ineffective. [Timer period (Note 3): 1 ms to 3 sec. approx. (1 to 10 ms: Setting possible in units of 1 ms, 10 to 100 ms: Setting possible in units of 10 ms, 100 to 500 ms: Setting possible in units of 50 ms, 500 ms to 1 sec.: Setting possible in units of 100 ms, 1 to 3 sec.: Setting possible in units of 500 ms)] |
|||
| Automatic interference prevention function |
Incorporated (Up to four sets of fiber heads can be mounted close together. However, U-LG mode is 8 fiber heads.)(Note 4) | |||
| Pollution degree | 3 (Industrial environment) | |||
| Ambient temperature | –10 to +55 ℃ –14 to +131 ℉ (If 4 to 7 units are connected in cascade: –10 to +50 ℃ +14 to +122 ℉, if 8 to 16 units are connected in cascade: –10 to +45 ℃ +14 to +113 ℉) (No dew condensation or icing allowed), Storage: –20 to +70 ℃ –4 to +158 ℉ |
|||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |||
| Ambient illuminance | Incandescent light: 3,000 ℓx or less at the light-receiving face | |||
| EMC | EN 60947-5-2 | |||
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure (Note 5) | |||
| Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure (Note 5) | |||
| Vibration resistance | 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude in X, Y and Z directions for two hours each | |||
| Shock resistance | 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions for five times each | |||
| Emitting element (modulated) | Red LED | Blue LED | Green LED | |
| Peak emission wavelength |
650 nm 0.026 mil | 470 nm 0.019 mil | 525 nm 0.021 mil | |
| Material | Enclosure: Heat-resistant ABS, Case cover: Polycarbonate | |||
| Cable length | Total length up to 100 m 328.084 ft (50 m 164.042 ft for 5 to 8 units, 20 m 65.617 ft for 9 to 16 units) is possible with 0.3 mm2, or more, cable. | |||
| Weight | Net weight: 20 g approx., Gross weight: 30 g approx. | |||
Notes:
