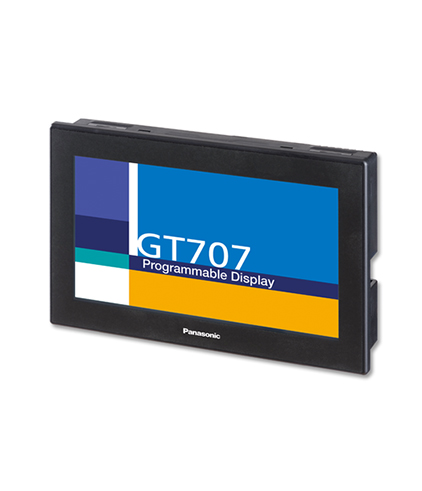

Wide screen, small body
7 inch width in space of a 5.7 inch!
CE : EMC Directive
Since 7 inch type can fit in a 5.7 inch type space, the screen shows more and the product looks greater.

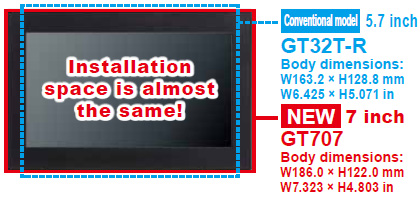

■Body dimensions comparison

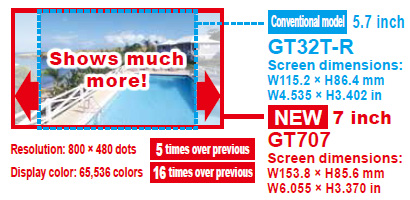

■Usable screen comparison

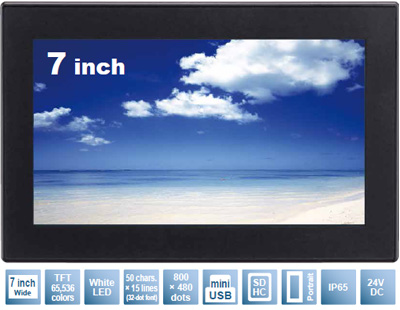

Easy-to-view screen thanks to use of a TFT LCD with contrast ratio of 500 : 1.
Designed for easy installation with slim frame and body compared to LCD

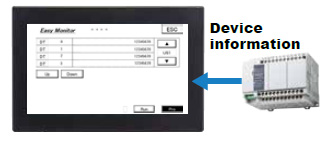

You can directly check PLC devices from the Programmable Display without having to use a PC (FPWIN GR / FPWIN GR7). The device monitor is easily viewed from the system menu, which eliminates the bother of screen creation (except FP7).
Easy to copy, back up, and restore screen data. Data logging possible.
You can connect your PC and GT707 using your USB cable to transfer screen data. When used with our FP series PLC, this display supports the pass through function, which allows simultaneous debugging of the PLC and the display.
However, the pass through function using the FPWIN GR and the FPWIN Pro is not available. Please use the FPWIN GR7 or FPWIN Pro7.

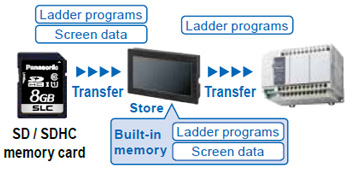

Transfer of PLC ladder programs and Programmable Display screen data is possible from a SD / SDHC memory card without using a PC. Also, PLC ladder programs can be backed up inside the Programmable Display and restored at any time (except FP7).
|Power supply||24 V DC|
|Operating voltage range||21.6 to 26.4 V DC|
|Power consumption||6 W or less (250 mA or less)|
|Ambient temperature||0 to +50℃ +32 to +122 ℉|
|Ambient humidity||20 to 85 % RH (at +25℃ +77 ℉), No condensation|
|Protective construction||IP65 (in the initial stages), Dust-proof and drip-proof from the front of the panel only (Rubber packing is attached to the panel contact surface.) (Note 1)|
|Net weight||360 g approx.|
|Display||Display device||7 inch, TFT color LCD|
|Resolution||800 (W) × 480 (H) dots|
|Display color||65,536 colors|
|Displayable area||153.5 (W) × 85.6 (H) mm 6.043 (W) × 3.370 (H) in|
|Number of screens||230 screens approx. (Note 2)|
|SD memory card slot||Available|
|Tool port||USB miniB|
