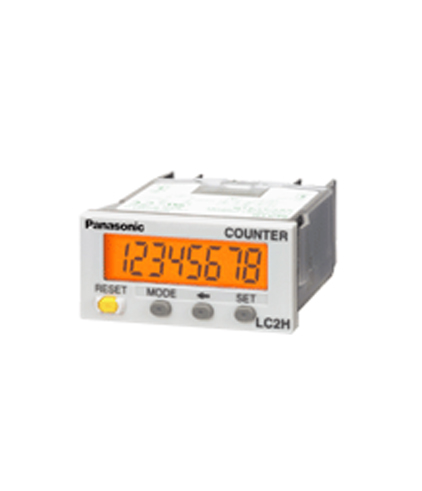

LC2H Preset Counters

PRESET COUNTER

UL/C-UL , CE Approved

Share this

Preset function equipped in half size (24 × 48 mm/ 0.945 × 1.890 inch).

2.Display has backlight for instant recognition.

LC2H-preset-pic02



3.8.7 mm/ 0.343 inch Character Height (previously 7 mm/ 0.276 inch)

Easy-to read character height increased from 7 mm to 8.7 mm/ 0.276 inch to 0.343 inch.

LC2H-preset-pic03



4.Plenty of Digits

LC2H-preset-pic04





5.Counting Speed Switchable between 30 Hz and 5 kHz



6.Conforms to IP66 Protective Construction (Front panel surface)

Weatherproofing supported by using optional mounting frame and rubber gasket



7.Includes reassuring lock mode and lock switch to prevent erroneous operation.



8.Screw terminals are constructed to protect fingers to ensure safety.



9.Compliant with UL, c-UL and CE.



Operation Mode

Output mode Operation Example when input mode is either addition or Subject:ubtraction
Output maintain/
hold count
[HOLD-A]
Output control is maintained after count-up completion and until resetting.
During that time, the count display does not change from that at count-up completion.
Output maintain/
over count
[HOLD-B]
Output control is maintained after count-up completion and until resetting. However, counting is possible despite completion of count-up.
One shot/
over count
[SHOT-A]
Output control is maintained after count-up completion for a fixed time (approx. 1 sec.). Counting is possible despite completion of count-up.
One shot/
recount I
[SHOT-B]
Output control is maintained after count-up completion for a fixed time (approx. 1 sec.). Counting is possible despite completion of count-up. However, reset occurs simultaneous with completion of count-up. While output is being maintained, restarting of the count is not possible.

Part Names

LC2H-preset-pic09

Notes:
1.Make the switch setting before installing to panel.
2.Please turn the power off if you change the setting of the count speed switch when the power is on. The setting will become valid when the power is turned back on



1.Front reset key
This key resets the count value. It does not work when the lock switch is ON.

2.Mode key
Use to switch between each mode.

3.Setting key
Used to set digits of preset values or set each mode.

4.Set key
Use to set preset values or to switch between modes.

5.Lock switch
Disable the operation of the front panel reset key and the mode key. With the lock switch on, is displayed for about two seconds when the reset key or mode switch is operated.

6.Count speed switch
Use this switch to switch the count speed between 30 Hz and 5 kHz.

Specifications


Item Descriptions
Rating Rated operating voltage 24 V DC
Rated power consumption Max. 1.5 W
Rated control capacity 100 mA 30 V DC
Input mode Addition/Subtraction (selectable by front switch)
Max. counting speed 30 Hz/5 kHz (selectable by slide switch on side)
Counting input Min. input signal width: 16.7 ms at 30 Hz/0.1 ms at 5 kHz,
ON time : OFF time = 1 : 1
Reset input Min. input signal width: Min. 30 ms
Input signal Non-voltage input using contacts or open-collector connection
Input impedance; when shorted: Max. 1 kΩ, when open: Min. 100 kΩ
Residual voltage: Max. 2 V
Output mode Maintain output/hold count
Maintain output/over count
One shot/over count
One shot/recount
(Selectable by front switch)
Display method 7-segment LCD
(Switch between red and green for backlight, and between lit and flashing for count up.)
Digit –9999999 to 99999999 (–7 digits to +8 digits)
(0 to 99999999 for preset value)
Memory EEP-ROM (Overwriting times: 105 operations or more)
Contact arrangement 1 Form A (Open collector)
Electrical life (contact) 107 operations (at rated control voltage)
Electrical Allowable operating
voltage range
85 to 110% of rated operating voltage
Break down voltage
(Initial value)
Between input and output: 1,500 V AC, for 1 min.
Insulation resistance
(Initial value)
Between input and output: 100 MΩ (at 500 V DC)
Mechanical Functional
vibration resistance
110 to 55 Hz (1 cycle/min), Single amplitude: 0.15 mm (10 min. on 3 axes)
Destructive
vibration resistance
10 to 55 Hz (1 cycle/min), Single amplitude: 0.375 mm (1 hr. on 3 axes)
Functional
shock resistance
Min. 98 m/s2 (4 times on 3 axes)
Destructive
shock resistance
Min. 294 m/s2 (5 times on 3 axes)
Operating
conditions
Operation temperature –10 to 55°C/ +14 to +131°F (without frost or dew)
Storage temperature –25 to +65°C/ –13 to +149°F (without frost or dew)
Ambient humidity 30 to 85% RH (at 25°C/ 77°F, non-condensing)
Protective construction IP66 (front panel with mounting bracket and rubber gasket)

*The factory default preset value is set to 1000000.
