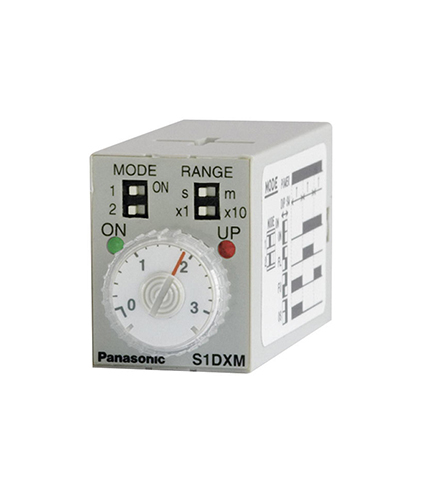

S1DXM-A/M Multi-range Timers

UL/C-UL , CE Approved

Share this

1.Multiple functions built in

The operation mode and time range can be switched by using the MODE and RANGE switches on the front panel.



2.Part number consolidation

1.The lineup consists of 64 easy-to-choosemodels.
2.An operation mode fixed type (S1DXM-A) and 4-operation mode switching type (S1DXM-M) are available.



3.Cadmium-free contacts used

To eliminate environmentally harmful chemical substances, relays with cadmium-free contacts are used.



4.Economically priced

1.Prices set to lower costs.
2.Further cost reduction when used with HJ Relay terminal socket.



5.CE marking supporte

UL and C-UL approved.



Operation Mode

1.S1DXM-A multi-range timer

Operation mode
Power ON-delay operation When power is turned on, the output contact operates after the set time.
The output contact remains on until the power is turned off.



2.S1DXM-M multi-range timer

Operation mode
Power ON-delay operation
[MODE] switch 1: OFF, switch 2: OFF		 . When power is turned on, the output contact operates after the set time.
The output contact remains on until the power is turned off.
Power Flicker OFF start operation
[MODE] switch 1: OFF, switch 2: ON		 When the power is turned on, the output contacts repeatedly operate at the set time.
The output contact begins from the off state.
Power Flicker ON start operation
[MODE] switch 1: ON, switch 2: OFF		 When power is turned on, the output contact operates repeatedly at the set time.
The output contact outputs at the same time power turns on.
Power One-shot operation
[MODE] switch 1: ON, switch 2: ON		 When power is turned on, the output contact performs the on operation at the same time power turns on, only for the set time.



Time range setting

Type Time scale Time unit Min.scale Max.scale Setting range
S1DXM-A 10M type ×1 ×10 s m 0.05 1 0.05 to 1s 0.5 to 10s 0.05 to 1m 0.5 to 10m
30M type s m 0.2 3 0.2 to 3s 2 to 30s 0.2 to 3m 2 to 30m
60M type s m 0.5 6 0.5 to 6s 5 to 60s 0.5 to 6m 5 to 60m
10H type m h 0.05 1 0.05 to 1m 0.5 to 10m 0.05 to 1h 0.5 to 10h
S1DXM-M 10M type ×1 ×10 s m 0.05 1 0.05 to 1s 0.5 to 10s 0.05 to 1m 0.5 to 10m
30M type s m 0.2 3 0.2 to 3s 2 to 30s 0.2 to 3m 2 to 30m
60M type s m 0.5 6 0.5 to 6s 5 to 60s 0.5 to 6m 5 to 60m
10H type m h 0.05 1 0.05 to 1m 0.5 to 10m 0.05 to 1h 0.5 to 10h

*The time setting range is the combination of the time scale (X1 or X10) on the dial and the time unit (s, m, or h).
Example: When dial reads 1,time scale is X1 and time units is seconds, then it is 1 second.



Operation Mode and Time Range Setting

Operation mode Power ON-delay Power Flicker OFF start Power Flicker ON start Power One-shot
Operation mode switch



Time range switch
The time setting can be switched among 4 ranges each for 4 types
for an interval between 0.05 seconds and 10 hours.
  1. The product is factory shipped with all settings on the OFF side (left).
  2. Do not operate the switches with a sharp-edged object such as a knife blade.
  3. The power must be turned off when setting the time range or operation mode. Operating the switches with the power on is a cause of breakdown and malfunction.
  4. Use a force of under 5 N to operate the DIP switches when setting the time range and operation mode.

Specifications

Item Specifications
Rating Rated operating voltage 24VAC 100 to 120VAC 200 to 220VAC 220 to 240VAC 12VDC 24VDC
Rated frequency 50/60Hz common –
Rated power consumption   Max. 3 VA
(at 24 VAC)		 Max. 3 VA
(at 100 VAC)		 Max. 3 VA
(at 200 VAC)		 Max. 3 VA
(at 220 VAC)		 Max. 2 W
(at 12 VDC)		 Max. 2 W
(at 24 VDC)
During time delay Approx. 3mA Approx. 3mA Approx. 3mA Approx. 3mA Approx. 5mA Approx. 3mA
After time delay Approx. 80mA Approx. 20mA Approx. 13mA Approx. 13mA Approx. 70mA Approx. 40mA
Rated control capacity Timed -out 2 Form C: 7A 250V AC (resistive load)
Timed -out 4 Form C: 5A 250V AC (resistive load)
Operation mode S1DXM-A
Power on delay operation fixed
(Power display: ON/green; Operation display (when output is on): UP/orange)
S1DXM-M
4 switchable operations: Power ON-delay/Power Flicker OFF start/Power Flicker ON start/Power One-shot
(Power display: ON/green; Operation display (when output is on): UP/orange)
Time accuracy*1 Operating time fluctuation & Power off time change error Max. ±1 %, (power off time change at the range of 0.1 s to 1 h), 1 s range: Max. ±1 % and 10 ms*2
Voltage error Max. ±1 % (at the operating voltage changes between -20 to +10%), 1 s range: Max. ±1 % and 10 ms*2
Temperature error Max. ±5% (at 20°C ambient temp. at the range of -10 to +50°C/ +14 to +122°F)
Setting error Max. ±10%, 1 s range: Max. ±10% and 20 ms
Contact Contact arrangement Timed-out 2 Form C, Timed-out 4 Form C
Contact resistance (Initial value) Max. 100mohm (at 1A, 6V DC)
Contact material Timed-out 2 Form C type: Silver alloy, Au plating
Timed-out 4 Form C type: Silver alloy, Au plating
Life Mechanical (constant) Min. 107
Electrical (constant) 2 × 105(at rated control capacity)
Mechanical Vibration resistance Functional 10 to 55Hz: 1 cycle/min double amplitude of 0.25mm (10min on 3 axes)
Destructive 10 to 55Hz: 1 cycle/min double amplitude of 0.375mm (1h on 3 axes)
Shock resistance Functional Min. 98m/s2 (4 times on 3 axes)
Destructive Min. 980m/s2 (5 times on 3 axes)
Electrical Allowable operating voltage range 80 to 110% of rated operating voltage
Reset time Max. 0.1s
Insulation resistance (Initial value) Between live and dead metal parts, between input and output, between contact sets, between contacts Min. 100 Mohm (at 500 V DC megger)
Breakdown voltage (Initial value) Between live and dead metal parts: 2,000 Vrms for 1 min
Between input and output: 2,000 Vrms for 1 min
Between contact sets: 2,000 Vrms for 1 min
Between contacts: 1,000 Vrms for 1 min
Max. temperature rise 70°C/ 158°F
Operating conditions Ambient temperature -10 to 50°C/ +14 to 122°F
Ambient humidity 35 to 85% RH (non-condensing)
Air pressure 860 to 1060 hPa
Ripple rate DC type only, transmission wave rectification (ripple rate: approx. 48%)*3
Mass (Weight) Approx. 45 g
Protective construction IEC standard: IP40 (IP50 when using ADX18008 protective cover)



  1. Unspecified measuring conditions are rated operating voltage (in case of DC type, ripple rate of 5% or less), ambient temp. 20℃/ 68℉, and power off time 1 second.
  2. Power one-shot 1 s range: +2% and 10 ms
  3. When using with a transmission wave rectification, vibration resistance and shock resistance properties worsen compared to when using a stabilized power supply.
